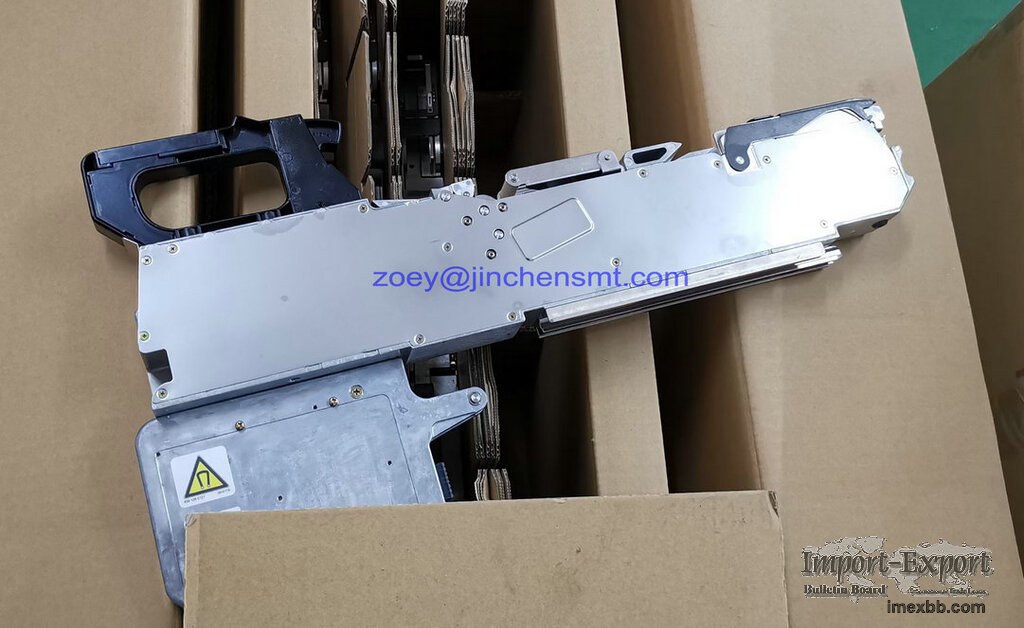

Hitachi Gt24320 24/32mm Feeder SMT Feeder

Hitachi CHIP Mounter feeder adjustment JIG JG-0209 for electric feeders



The jig makes it possible to perform the following measurements and write the
offset data.

Measurement of Component Pickup Position and Writing of Offset Data for Tape
Feeders

Lane Origin Offset (Lanes #1 and #2 for 8mm Tape Feeder)

Offset Data X,Y and Z

Notes: (a) The master tape is required for measurement of the X/Y data

(b)The following apparatuses are required for the measurement of the Z data.
These apparatuses are not included in this feeder adjusting jig.

Block Gauge(104MM)

Pry-Type Dial Gauge(0.01MM)

Stand(used for the pry-type dial gauge)

Surface Plate(300 x 300mm or more )

HITACHI SIGMA-G5/G5S/F8/F8S GXH-1/1S/3 machine feeders

8MM GT-38080/GD-38080/GD-38083

8MM GT-28080/GD-28080/GD-28081/GD28083

8MM GT-18080/GD-18080/GT-18081/GD-18081

8MM GT-08080/GD-08080/GT-08081/GD-08081

12/16MM GT-12162/GT-12161/GT-12160

12/16MM GD-12162/GD-12161/GD-12160

24/32MM GT-24322/GT-24321/GT-24320

24/32MM GD-24322/GD-24321/GD-24320

44/56MM GT-44562/GT-44561/GT-44560

44/56MM GD-44562/GD-44561/GD-44560

72MM GT-72002/GD-72002/GT-72001/GT72000

88MM GT-88002/GD-88002

Thanks

zoey@jinche , nsmt.com
