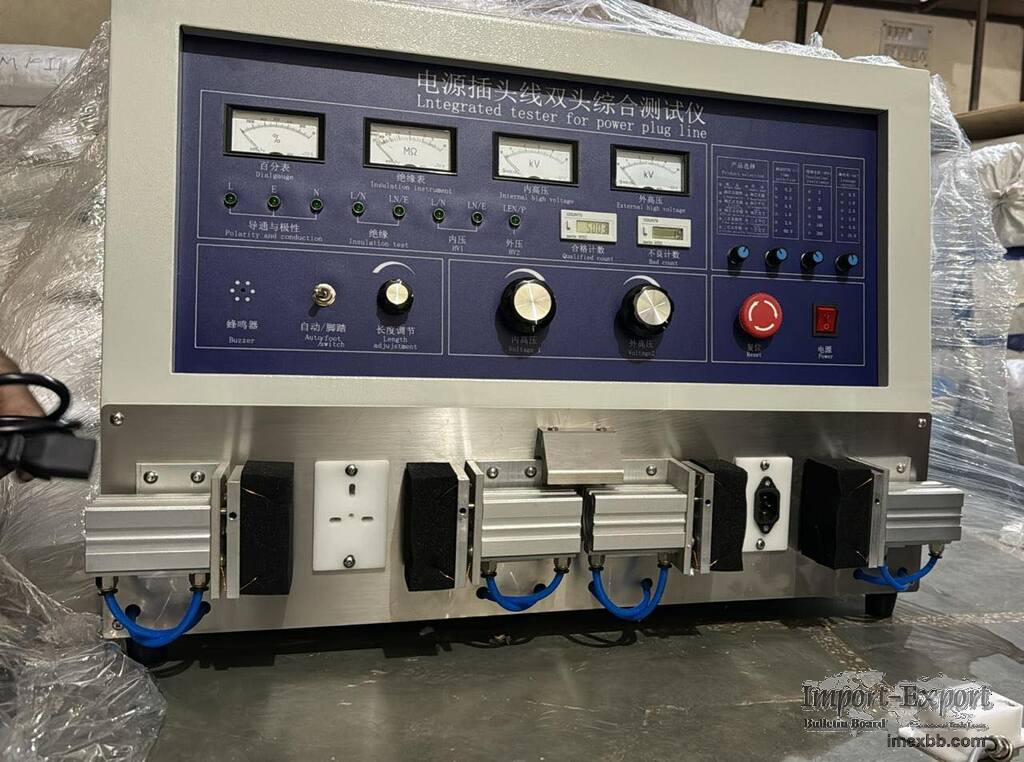

HL-CS-8802 High Voltage Cable Testing Machine Wiring Harness Power Cord Plu

Product Details:
Meet the standards: BSI, UL, VDE, CSA, SAA, T-MARK, KS, IRAM, CCC and other
national standards
Scope of application: Detecting the polarity conduction, insulation, core high
voltage and copper leakage of the power cord cable
Polarity ：Break over, short circuit, open circuit, dislocation
Leakage current ：Setting Range:0.5, 1.0, 2.0, 3.0, 5.0, 10mA
Internal High-Voltage ：Output 0---5KV(500VA) Adjustable
External High-Voltage ：Output 0---5KV(500VA) Adjustable
Operating Voltage ：220VAC 12A 50\60 HZ
Voltmeter High-voltage：range:0-5KV
Resolution：0.5 level
Insulation Voltage ：Output Voltage:DC500V
Insulation resistance ：Range:2,7,20,50,100,200MΩ
Vol , tage withstand time ：Timing Range:0.1-99.9/S
Min time for item ：measuring:0.3S
Wire sensitivity ：>10pF
Barometric Pressure：<4 Kgf/cm2
OK Product ：Automatic printing and push out, counting, and indicator ON
NG Product ：Automatic model locking, counting,indictor ON and buzzer ringing
Safeguard：electric leakage, Short circuit ,overheating
Size：(W)730*(D)530*(H)500 (mm),
Machine Weight：68Kg

Minimum Order: 1 pieces
