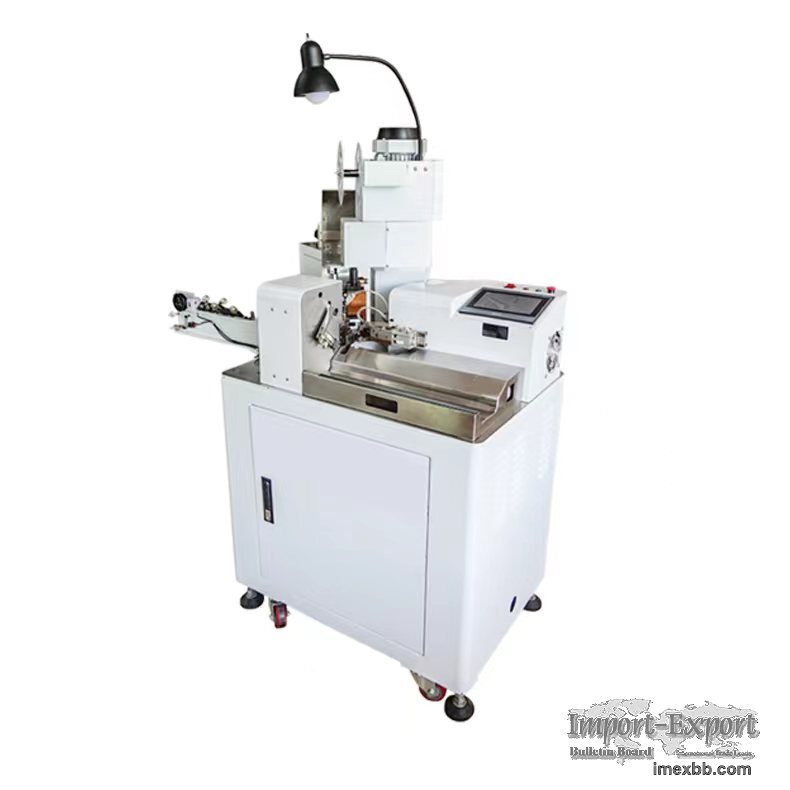

HL-R01 Full Automatic Terminal Crimping Machine one head with tin plated.

Features

Full automatic terminal crimping machine, using high-tech frequency conversion
technology, electronic precision positioning, when pressure welding machine
working noise is smaller than the traditional terminal, and save electricity,
the variable is more convenient and quick, avoid the traditional terminal
clutch,   cable lug crimping machine

Specifications: full automatic terminal crimping machine

1. Full automatic terminal crimping machine
2. Built-in frequency converter, high speed and low noise
3. One machine is suitable for various terminals, very easy to change mold.
4. Support manual mode and automatic mode, you can adjust the machine easily in
manual mode.
5. LED display will show how many terminals have been crimped.
6. Speed is adjustable, crimping die designed according to your requirement.

Parameter

Size:720L*850 , W*1650H
Weight:265KG
Display:Color LCD touch screen
Mode of operation:Auto run + manual operation
Blade adjustment method:Motorized adjusting
Blade material:Swedish ASP60 powder high speed steel cutter materials
Wire stripping/tin length:4mm-10mm
Suitable wires:AWG18—28#
cutting speed:4300 PCS/hour
working ability:2200PCS/hour
Crimp force:standard 2.0T Other pressure relays need to be customized
Air pressure:5.0KG (stability, dry air)
Power:AC 220V
Rated power:2.5KW
Detector:1.terminal exists or not 1.wire exists or not 3.press exists or not
4.air pressure exists or not

Minimum Order: 1 pieces
