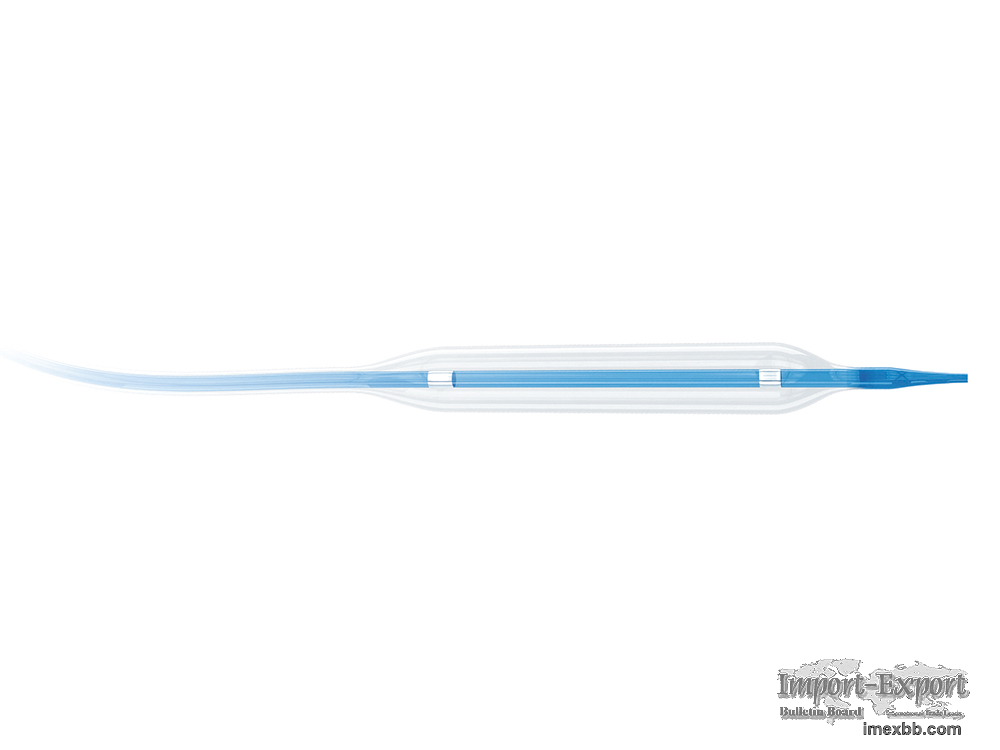

Hoper™ PTCA Balloon Dilatation Catheter

To develop Lepu Medical into one of the largest cardiovascular products
manufacturers and on the platforms of medical device, medicine, healthcare
products, healthcare service and new medical mode.

The balloon material of Hoper™ is a semi-compliant Nylon, providing a 'Work
Your Size' of ±10% size growth.

Hoper™ PTCA Balloon Dilatation Catheter Details
Product Description
• Small tip profile for excellent crossability.
• Three-directional memory folding of the balloon allows for size
minimization with great withdrawal capability and ensures the good
performance of repeated dilatation.
• Soft tapered tip provides a smooth transition from guidewire to balloon
dilatation catheter to avoid "fish mouth", and minimize the vessel damage.
• Transparent hub is convenient to observe the air bubble to reduce the
operation risk.

Product Features
• 0.017" soft tapered tip
• 2 swaged Platinum markers
• 3-directional-memory-folds balloon
• Good re-folding ability
• Excellent withdrawal ability
• Transparent hub

Benefits
• Enhanced crossability
• Minimized damage to the vessel wall
• Reduced operation risk of air bubble

Ranges
• Ø 1.5 - 4.0 mm
• 9 - 30 mm multi balloon lengths

Advantages
✓Soft and resist pressure
✓Diameter controlled accurately

Specifications
Technical Parameters
Catheter Design Rapid Exchange
Balloon Compliance Semi-compliant
Marker 2
Distal Shaft O.D. 2.8F
Proximal Shaft O.D. 2.3F
Tip Profile 0.017”
Minimum Guiding Catheter Compatibility 5F (0.056”)
Guide Wire Compatibility 0.014”
Effective Length 135cm
Nominal Pressure 8 atm (φ1.5mm-3.0mm) / 6 atm (φ3.5mm-4.0mm)
Rated Burst Pressure 16 atm (φ1.5mm-3.5mm) / 14 atm (φ4.0mm)

Ordering Information
Diameter Balloon Length (mm)
(mm) 9 11* 12 14* 16 18 20 22* 24
26* 30
1.5 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
15009 15011 15012 15014 15016 15018 15020 15022
15024 15026 15030
1.75 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
17009 17012 17012 17014 17016 17018 17020 17022
17024 17026 17030
2 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
20009 20011 20012 20014 20016 20020 20020 20022
20024 20026 20030
2.5 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
25009 25011 25012 25014 25016 25018 25020 25022
25024 25026 25030
2.75 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
27009 27011 27012 30014 27016 27018 27020 27022
27024 27026 27030
3 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
30009 30011 30012 30014 30016 30018 30020 30022
30024 30026 30030
3.5 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
35009 35011 35012 35014 35016 35018 35020 35022
35024 35026 35030
4 LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX LPRX
LPRX LPRX
40009 40011 40012 40014 40016 40018 40020 40022
40024 40026 40030

As one of the leading angioplasty balloon manufacturers, Lepu Medical is
devoted to provide Chinese people with omnipresent care all the while.
