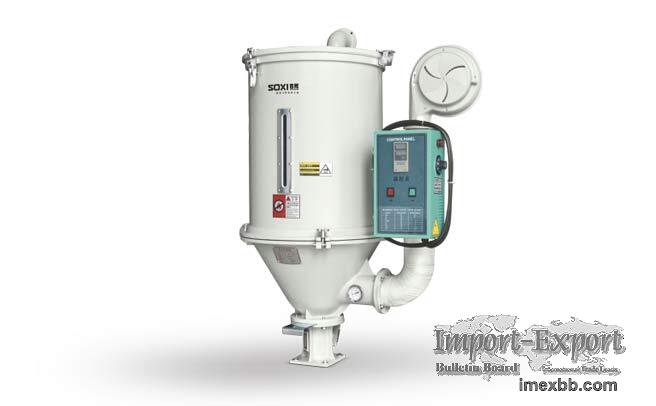

HOT AIR DRYER

The hopper dryer can be directly installed on the injection molding machine.
Hot air enters evenly from bottom to top to ensure a good drying effect. The
middle part of the barrel is an openable structure for easy cleaning. The
air volume can be adjusted according to actual needs to suit different
drying requirements. PID temperature control logic ensures the accuracy of
hot air temperature. Equipped with over-temperature, overload and other
safety protections to ensure safe production.

Specification Of Hot Air Dryer

Standard specifications SXB-12 SXB-25 SXB-50 SXB-75 SXB-100 SXB-150 SXB-
200 SXB-300 SXB-400 SXB-600
Tank capacity kg 12 25 50 75 100 150 200
300 400 600
Heating power rpm 2 3 4 4 6 6 12
15 18 21
Fan power kw 0.05 0.09 0.1 0.1 0.25 0.25 0.35
0.35 0.75 1.1
Drying temperature ℃ 180
Voltage V 220~460
Width mm 296 388 465 465 604 604 746 746
900 1052
Depth mm 590 740 858 858 1052 1052 1250 1250
1396 1575
Height mm 695 782 1072 1072 1258

Features Of Hot Air Dryer
The contact surfaces of the raw materials are made of non-rusty materials to
avoid contamination of the raw materials
The barrel structure is openable in the middle, and the buckle can be
released quickly
Both the barrel and the base are equipped with transparent windows
The air inlet of the fan can be adjusted as required
PID temperature control
Basically equipped with over-temperature and overload protection

Hot Air Dryer Working Principle

Hot Air Dryer Working Principle
Hot Air Dryer Gallery
Hot Air Hopper Dryer
Hot Air Tray Dryer

As a plastic machine company, SOXI products consist of plastic auxiliary
equipment and plastic machinery equipment.

As one of hot air dryer manufacturers, we are committed hot air dryer design
and hot air dryer industrial.

We also provide hot air dryer for plastic and competitive hot air dryer
price.
