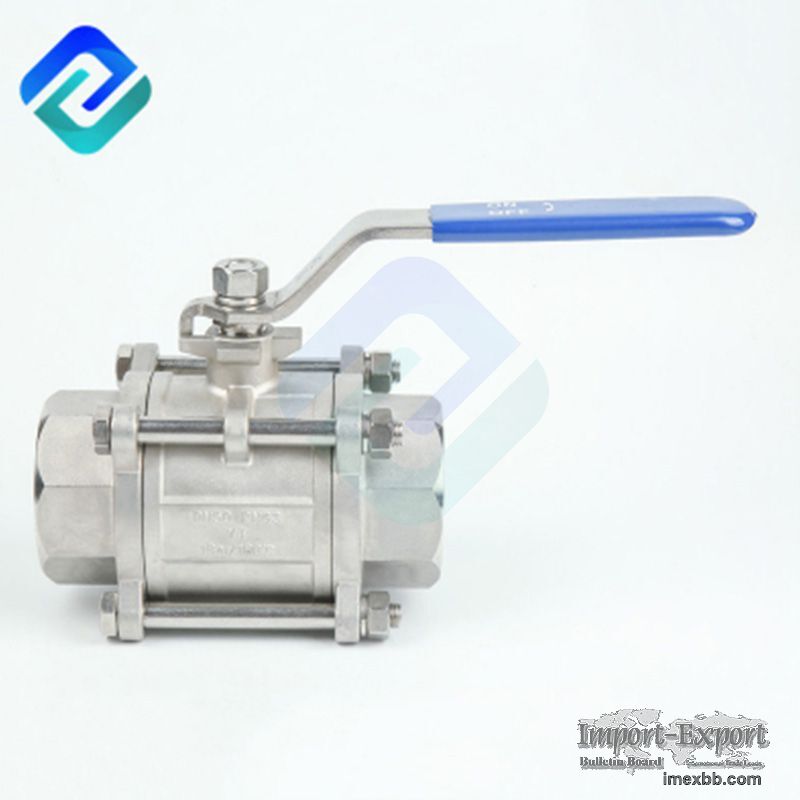

Hot selling stainless steel 3 pcs 1/4~4 inch stainless steel ball valve

Hot selling stainless steel 3 pcs 1/4~4 inch stainless steel 304/316 ball valve
The three-piece ball valve is one of the most widely used valves in recent
years. The three-piece internally threaded ball valve is a new type of ball
valve with some unique advantages of its own structure. For example, the switch
has no friction, and the seal is not easy to wear. , The opening and closing
torque is small. In this way, the specifications of the equipped actuator can
be reduced, and the multi-turn electric actuator can be used to adjust and
strictly control the medium.

The three-piece internally threaded ball valve is suitable for working
conditions requiring strict shut-off in petroleum, chemical, urban water supply
and drainage, etc. The internal thread ball valve switch is light, small in
size, can be made into a large diameter, reliable sealing, simple structure,
easy maintenance, the sealing surface and the spherical surface are often in a
closed state, not easily eroded by the medium, and is widely used in various
industries. We are Stainless Steel Ball Valve Supplier.


Investment castings for body and cap
Internal entry blow-out proof stem
Pressure Rating:1000PSI(PN63)
Thread End: ANSI B2.1,BS21,ISO7/1



Working Temperature:-25℃~+180℃
Material:CF8M,CF8,CF , 3M,WCB

Material List
ITEM PART MATERIAL QTY
1 BODY A216-WCB A351-CF8 A351-CF8M 1
2 BALL 304 304 316 1
3 SEAT PTFE/RPTFE 2
4 THRUST WASHER PTFE 1
5 GASKET PTFE 2
6 PACKING PTFE 1
7 GLAND NUT 304 1
8 STEM 304 304 316 1
9 SPRING WASHER 304 1
10 NUT 304 1
11 HANDLE 304 1
12 LOCK 304 1
13 HANDLE COVER PLASTIC 1
14 CAP A216-WCB A351-CF8 A351-CF8M 2
15 SPRING WASHER 34 304 304 4(6)
16 NUT 304 4(6)
17 BOLT 304 304 304 4(6)
DIMENSION TABLE
SIZE Φd L H P D W N.M KGS
DN6 1/4’’ 12.5 51 43.5 9.6 14.1 103 5 0.28
DN10 3/8’’ 12.5 51 44.5 9.6 17.6 103 5 0.28
DN15 1/2’’ 15 63 50 9.6 21.7 103 6 0.45
DN20 3/4’’ 20 71 59 12.7 27.1 127 10 0.60
DN25 1’’ 25 80 61 12.7 33.8 127 12 0.81
DN32 1-1/4’’ 32 94 79 12.7 42.5 154 17
1.44
DN40 1-1/2’’ 38 103 83 12.7 48.6 154 30
1.72
DN50 2’’ 50 126 94 15.8 61.6 195 48 2.73
DN65 2-1/2’’ 62 158 135 15.8 77 244 58
5.45
DN80 3’’ 76 179 144 24 90 244 96 7.65
DN100 4’’ 94 213 149 24 115.2 285 124 15.78
