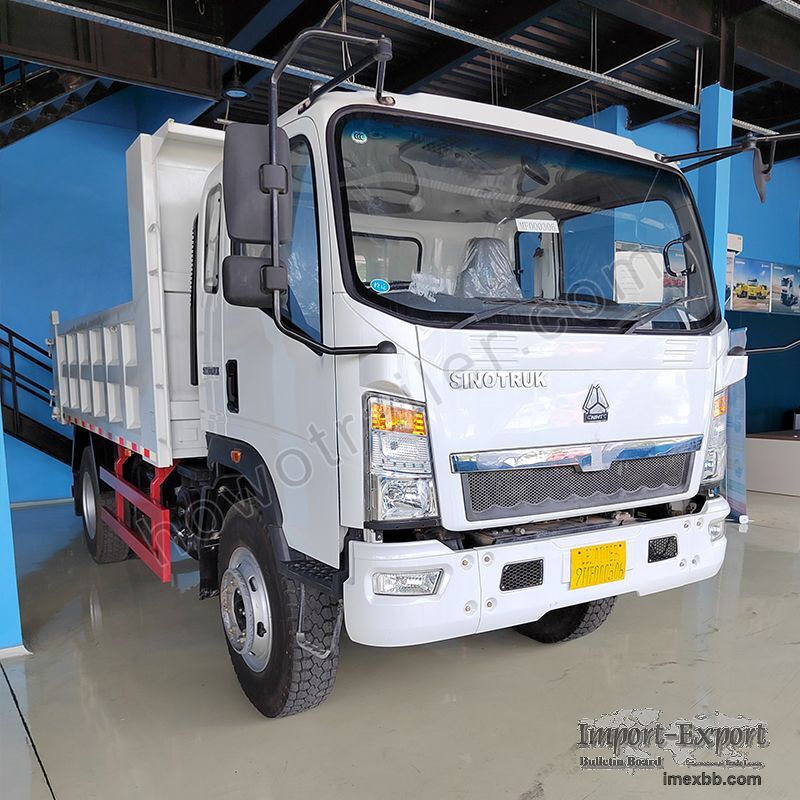

HOWO 4x2 Dump Truck

HOWO tipper has extraordinary performance in construction, mining and other
application scenarios especially in the harsh working environment, HOWO tipper
is the most welcome 4*2 heavy-duty tipper and it has the largest market share
in Africa and many other regions,  HOWO Engines is at various horsepower +
transmissions with various torques to meet the needs of different working
scenarios, it has a variety of cabs with different configurations to meet
different driving needs, it also has a variety of chassis and cargo bucket
choices to satisfy different working needs, more than 1.5 million HOWO heavy
truck tipper has been sold until now. All kinds of cargo body structure can be
designed and produced according to your request, make it have light curb
weight, high rigidity, high loading capacity.
HOWO 4*2 (6 wheels) Construction and Cargo Tipper/Dump truck Technical
Specifications
 Cabin Driving type 4x2     LHD/RHD
 2080 cabin with one sleeper & A/C.
Dimensions Overall dimensions (L x W x H) mm 6850×2520×2890
(Approx.)
Wheel base (mm) 3800
Weight in KGS Tare Weight 7500KG
payload 5000-15000KG
Front axles loading capacity 5000KG
Rear axles loading capacity 13000KG
Max. driving speed（km/h） 87
Engine Brand Yuchai
Model YC4E160-33
Type 4-stroke direct injection, in-line, water cooling, turbo
charged
Horse Power（HP) 160HP
Emission standard Euro II
Gearbox HW90510C / 10 forward &2 reverse
Tire 10.00R20 ×7
Brakes Service brake: dual circuit compressed air brake
Parking brake :(emergency brake): spring energy, compressed air operating on
rear wheels
Auxiliary brake: engine exhaust brak , e
Body Dimensions 4500×2300×1000mm, sidewall 3mm, bottom 5mm
Lifting system Hydraulic front or middle cylinder lifting

Remarks: The vehicle technical specifications are for reference only and
subject to change without prior notice for the sake of product improvements.
