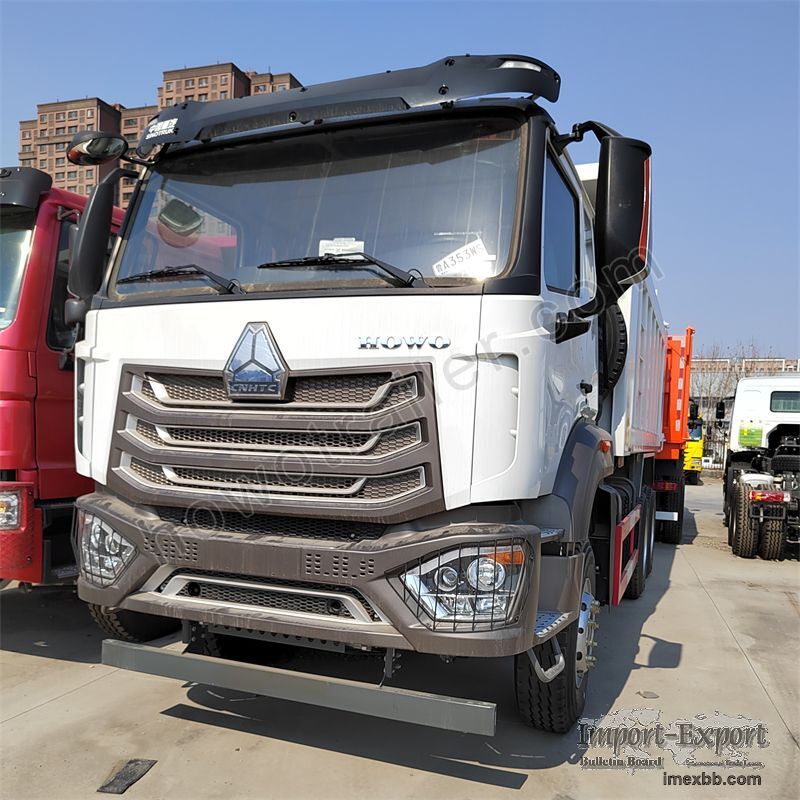

HOWO 6X4 Dump Truck

Brief Introduction Over HOWO Tipper
HOWO tipper has extraordinary performance in construction, mining and other
application scenarios especially in the harsh working environment, HOWO tipper
is the most welcome heavy-duty tipper and it has the largest market share in
Africa and many other regions, HOWO Engines is at various horsepower +
transmissions with various torques to meet the needs of different working
scenarios, it has a variety of cabs with different configurations to meet
different driving needs, it also has a variety of chassis and cargo bucket
choices to satisfy different working needs, more than 1.5 million HOWO heavy
truck tipper has been sold until now. All kinds of cargo body structure can be
designed and produced according to your request, make it have light curb
weight, high rigidity, high loading capacity.
HOWO 6*4 (10 wheels), Mining and Construction Tipper /Dump truck, 400HP
Technical Specifications
Cabin HW76 cab, with one sleeper and two seats, 2-arm windscreen wiper system
with three speeds, damped adjustable driver's seat, with heating and
ventilating system, air conditioner
Engine Make: SINOTRUK
Diesel 4-stroke direct injection diesel engine
Engine model: WP12.400, Euro 2, 400HP
6-cylinder in-line with water cooling, turbo-charging and intercooling
Displacement: 9.726 L
Transmission HW19710, 10F & 2R, with PTO
Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1),
3.18(R2)
Steering ZF power steering, model ZF8118, hydraulic steering with power
assistance
Front Axle VGD95, 1x9,000 KGS, Steering with double T-cross section beam
Rear Axle HC16, 2x16,000 KGS, Pressed axle housing, central single
reduction with hub reduction and with differential locks between wheels and
axles.
Propeller Shaft Double universal joint propeller shaft with gear-shaped
coupling flange
Chassis Frame: U-profile parallel ladder frame with section of 300x80x8mm, and
reinforced subframe all cold riveted cross members
Front suspension:10 semi-elliptic leaf spring, hydraulic telescopic double-
action shock absorbers and stabilizer
Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer
Brake Service brake: dual circuit compressed air brake
Parking brake (emergency brake): spring energy, compressed air operating on
front shaft and rear wheels
Auxiliary brake: engine exhaust brake
Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and
reverse light
Fuel Tank 300L
Tires 315/80R22.5 or 12.00R20 Tires, 10+1 Pics.
Color Optional
Overall Dimension 8400×2600×3500 mm
Box Dimension 5800*2300*1500 mm, 20CBM
Thickness: Floor 8 mm, Side 6 mm
Front or middle Lifting System
