Hydraulic Ironworker Machine

Details of Hydraulic Ironworker Machine
Q35Y series hydraulic ironworker machine adopts the hydraulic driving system,
which is the latest product of hydraulic ironworkers in China. The whole
machine is characterized by low noise, smooth movement, simple structure and is
easy to operate.

Hydraulic Ironworker machine can cut punch all kinds of holes. Various metal
plates, square bar, angle steel, round iron, flat bars, profiled bars, channel
steel, and joist steel can be cut, punched and notched on the machines.

Hydraulic Ironworker Machine Main Technical Parameters:
Ironworker Profile \ Model Q35Y-16 Q35Y-20 Q35Y-25 Q35Y-30 Q35Y-40
Punching Pressure (T) 60 90 115 145 200
Max cutting thickness (mm) 16 20 25 30 40
Plate strength (N/mm²) ≤450 ≤450 ≤450 ≤450 ≤450
Angle of shear (°) 7 8 8 8 8
Shearing size of one stroke (mm) 16x250 8x400 20x330 10x480 25x330
16x600 30x335 20x600 40x335 30x600
Ram stroke (mm) 80 80 80 80 100
Stroke times (per  min) 12--28 18--30 9--18 8--16 8--16
Throat depth (mm) 300 355 400 600 600
Punch depth (mm) 16 20 25 28 30
Max punching diameter (mm) 25 30 35 38 40
Main power (kw) 7.5 7.5 7.5 11 18.5
Overall dimensions (L*W*H) (mm) 1700x750x1800 1950x900x1950 2355x960x2090
2800x1100x2500 2800x1100x2500
Weight(kg) 1800 2200 4800 6200 9200
Round bar 45 50 60 65 70
Square bar 40x40 50x50 50x50 55x55 60x60
Equal angle 90°shearing 125x125x12 140x140x12 160x160x14
180x180x16 200x200x18
45°shearing 70x70x8 70x70x10 80x80x7 80x80x10
80x80x10
T-Bar 90°shearing 120x120x12 140x70x12 160x160x14
180x180x16 200x200x18
45°shearing 60x60x8 70x70x10 80x80x10 80x80x10
80x80x10
I-Bar 126x74x5 200x102x9 200x102x9 280x124x10.5
280x124x10.5
Channel 126x53x5.5 160x60x6.5 200x75x9 280x86x11.5
300x89x11.5


MYT is one of professional hydraulic ironworker machine manufacturers, we
provide hydraulic ironworker for sale, ironworker machine for sale, duct making
machine and etc. Want to know more? Please contact us.

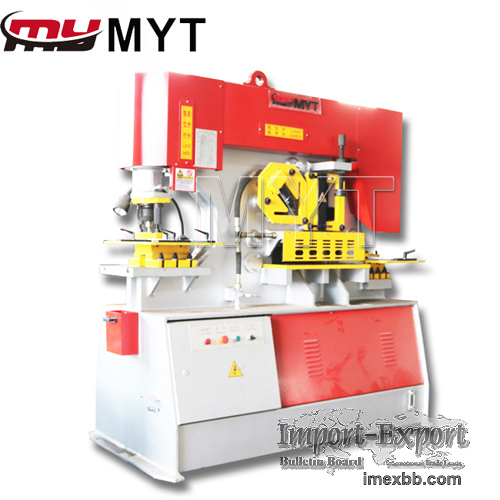

Hydraulic Ironworker Machine
