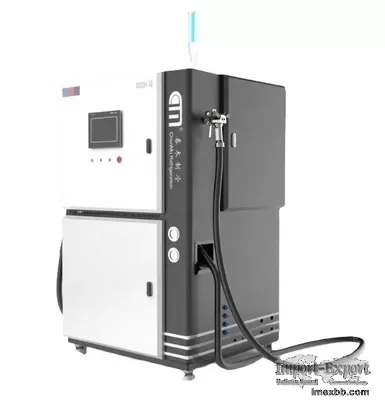

Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment

hydrocarbon R290 refrigerant recovery charging machine automatic flammable
filling equipment ac recycling machine

Product Description

CM8600 dual charging gun twin system refrigerant charging machine for
refrigerator assembly line

CM8600(ExT)series Dual System A3 refrigerant charging machine was specially
designed for Flammable and explosive refrigerants and to be used in any kind
of assembly lines of cooling system (refrigerators, water cooler,heat pump,
air conditioners etc...) to perform evacuation, leakage test and refrigerant
charging. This model equipped with 2 charging system allowed 2 charging gun
work at same time. This model also have recovery function option which can
meet the requires of mix production line. The whole system was CE and ATEX
certificated.



Specification
,

Model
CM8600 (ExT)
Series No.
ExT40
ExT60
Charging Speed
≥40g/s (2.4kg/min)
≥60-80g/s (3.6-4.8kg/min)
Charging capacity
(for one time)
10-999999g
Charging accuracy
＜100g,±0.5g
100g—2000g,≤±0.5%
＞2000g,≤±0.3%
Charging technology
RRT turbine flowmeter (RHEONIK mass flowmeter is optional)
Resolution
0.1g
Certification
CE,ATEX
Vacuum pump
4L/S
8L/S
Vacuum degree
3-5 pa

Injector connection
Hansen 1/4” or 3/8”
Charging hose length
3m - 20m
Communication interface
RS485/RS232/Enternet
Pre-set Channel
100
Compressed Air
0.5-0.7Mpa
PLC
Siemens
Power Supply
380V 50Hz 3Ph/220V 50HZ 1Ph
Approved Refrigerants
R600a,R290,R32,R1234ze,R1234YF,R13 , 4A
Application
Air Condition,Water Cooler,Beer Machine,Freezers, Refrigerators, chillers,
heat pumps
Features
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 0
Main Features & Advantages
·Siemens smart PLC technology for fast and accurate operation process
·Large colorful touch screen make the operation easy and simple
·High precision mass flowmeter technology ensures charging accuracy
·Powerful pneumatic booster pump for high speed charging rate
·The continuous charging quantity up to 99999g
·Automatic reminder function when the liquid supply tank is lack of
refrigerant
·Combine vacuum, leakage inspection, refrigerant charging to all in one
system
·Equipped with leakage alarm device
·High charging accuracy
Customer Project
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 1
Related Product
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 2
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 3
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 4
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 5
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 6
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 7
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 8
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 9
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 10
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 11
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 12
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 13
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 14

Electric Oil Pump



Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 15

Manual Oil Pump



Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 16

Steel Cylinder


Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 17

Vacuum Pump



Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 18

Trolley Tube Pipe Cleaner



Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 19

Portable Tube Pipe Cleaner


Our Company
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 20
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 21
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 22

CM factory, Nanjing Wonfulay Precision Machinery Company Ltd, is located in
Nanjing, China. Ever since its establishment in 1990s, CM dedicates itself
to R&D and manufacturer of refrigerant recovery
systems(recovery/recharge/reclaim/vacuum/etc). With its unremitting efforts
and more than 20 years of experience, their refrigerant recovery systems
have got several national and international patents and their machines have
earned good reputation among the customers.


Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 23
Exhibition
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 24
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 25
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 26
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 27
Packing & Delivery
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 28
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 29
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 30
Hydrocarbon R290 Refrigerant Charging Machine Flammable Filling Equipment 31

Packing: carton, pallet, wooden case.



Delivery time: within 7-30 days after receiving the payment.
