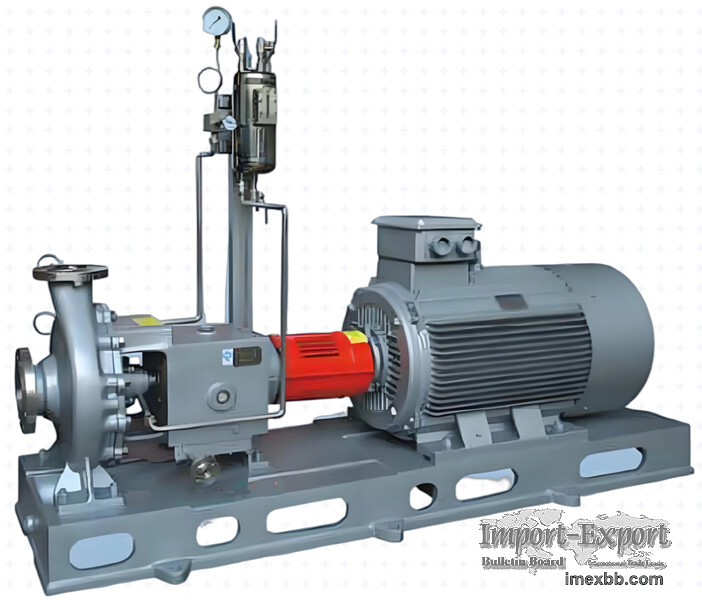

IJ centrifugal chemical process pump

IJ series chemical process pump absorbs techniques in
API610 the 10"' edition and ASME B73.l-2001 standard,
and is a successful upgrade and innovation based on IH pump (a Chinese standard
chemical process pump series).IJ series chemical process pump is a centrifugal pump
of horizontal, single stage, single suction, cantilever design,
its performance parameters conform to GB/T5662
standard (corresponding to 1SO2858). Adopting advanced
hydraulic design, the pump possesses higher hydraulic
efficiency, heightening by 5% in comparison with IH
pump, and thus it is an energy-saving product. In the
design of structure, by referring to American ANSI
standard, the shaft diameter is increased and cantilever
ratio is shorten to eliminate the shortages that IH pump's
shaft breaks frequently, thus operational stability improves,
maintenance fee and operational cost decreases. Through
uninterrupted research and improvement on mechanical
seal and seal chamber by referring to American API 682
standard, 171 series mechanical seal is developed and
applied successfully to the industries of soda, chlorine alkali, salt-making,
metallurgy, paper-making and environmental protection as well as other industries
where
the medium is liable to crystallize or contain solid
particles. Besides 171 series mechanical seal, IJ series
chemical process pump can adopt other seal plans
recommended by API 610. Through Over ten years'
improvement and models development, the applicable
scope of IJ series pump is gradually extended,
presently there are over 100 specifications, covering
the applications of all the chemical processes under
pressure 2.SMPa and temperature 200°C. IJ series is
one of three main chemical process pump series
extensively applied along with CZ and ZA series in China. The pump is widely used
in chemical industry, petrochemical, paper-making, dyeing, food etc.
Conform to 1502858, GB/T5656, APl682 Standard,
Max operating pressure 2.SMP
Range of Capacity (0.64-2400)m3/
Total head (4-250)m
Range of operating Temperature( -20-200)'C
Material: For wetted parts in contact with medium, the common materials are as
follows: 304,321,316L, 310Cu, 0Cr25Ni6 (duplex stainless steel),alloy 20#, 904, TA2
(titanium, Ti/Pd(titanium-palladium alloy), Ni(nickel), Monel etc.

Minimum Order: 1 sets
