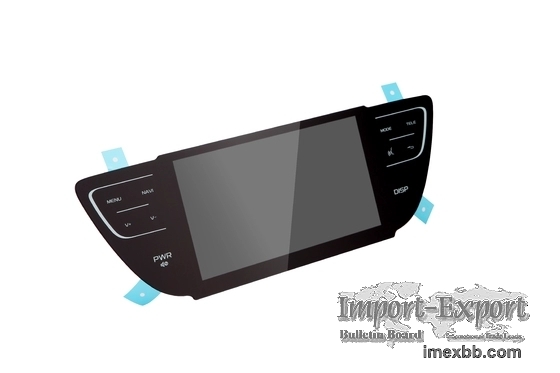

Incar Special Shape PCT Projected Capacitive Touch Panel For Rearview Mirro

Incar Special Shape PCT Projected Capacitive Touch Panel For Rearview Mirror





№

Item

Specification

Standard projected capacitive touch panel with controller (interface:USB)

1

Item NO.

DPT-PCT-

2

Detection method

Projected Capacitive

3

Size



4

working area

see drawing

5

Outline dimension



6

Resolution

2048*2048

7

Input method

Finger

8

Touch action force

30~60g

9

Operating Voltage

3.3V adjustable

10

Operating current

2.5~10mA Depends on IC

11

Operating temperature

-20°C~60°C

12

S , torage temperature

-20°C~60°C ,＜90%RH；40°C~70°C,＜60%RH

13

, Humidity

10%~90%RH at 40°C, non-condensing

14

Relative humidity

10%~90%RH at 40°C, non-condensing

15

Response time

<35ms

16

Transparency ,

≥82% depends on the quantity of layers

17

Surface hardness

≥7H

18

Material structure

GFF

19

Thickness

1.35mm

20

Light transmission

92%~100%

21

Dura , bility

Scratch-free; More than 50,000,000 touches in one location without failure

22

Drivers available

Windows 2000,Windows XP,Windows NT,Linux,Mac

23

Certificates

, CE, FCC, RoHS

24

Working environment

Under sunlight,indoor and outdoor

25

Finger Touch life

≥35,000,000 times

26

Warranty

1 year
