Inclined Surface Flap Barrier Gate YW120YX

Inclined Surface Flap Barrier Gate Description:
CXT upgraded Full automatic flap barrier turnstile/Flap barrier gate is to make
up the existing defects caused by general series in the market, It is one of
CXT upgraded Access control product with the high-tech patent.It adopts the new
industrial-grade circuit and ARM control system and the unique mechanical
design, combined with the characteristic of brush-less motor drive technology
and accurate limit of technology, those make the product incomparable and
revolutionary improved both in performance, lifespan, speed, noise, Smoothness
and etc.

Inclined Surface Flap Turnstile Gate Unique Features:
Adopt Brush-less motor, it has a longer lifespan.
Adopt control technology, which has stronger function and better expandability.
Flow rate more fast,and switching speed up to less than or equal to 5s
Low noise, sound can be achieved ≤ 20 decibels.
Running more smooth, that is no shaking, no shake, no echo.
Door will keep opened automatically while power cut off.
Direction of through is adjustable, one-way, bi-direction.
LED direction indicator
Anti-pinch function
Anti-tail, prevent people follow pass without verified
Use super capacitor instead of backup battery for gate open with electric cut
off, without any shipping problem because of the battery.
Prevent wrong direction pass, go through wrong direction will be alarm by beep
Option RFID access controller, fingerprint reader, facial identify reader, qr
code reader, barcode reader, consume system.

Inclined Surface Flap Barrier Turnstile Technical Parameter:
Housing material: International standard 304SS
Processing work craft: Adopt laser, bend, cut, weld, polish and etc.
Box size:L1200*W300*H1000(mm)/per difference models
Weight:About 50kg(single core); 70kg(double core)
Lane width: 570mm
Passing speed: 30-45 people/minute
Work environment: Indoor or outdoor(rain shelves is suggested)
Drive motor: DC Brush-less motor(24v)
Working voltage: AC220±10V,50HZ
Input interface: Relay switch signal
Lifespan: Above 8 million times
Humidity: 5%--90%
Work temperature: -40℃-- 80℃
Gate open or close time: 0.4--1s adjustable
Communication interface: RS232/RS485/TCP/IP

What's the advantage of CXT flap turnstile gate between other suppliers?
We are the first turnstile gate suppliers who adopt DC brush-less motor to
length Flap barrier gates' serving period up to 10+ years in China.
CXT flap turnstile gate has our own special design in moving parts, it has
smooth and mute running, and also inner space looks more neatly.
Use high-quality electromagnet and selector sensor.
high-tech retractable barrier gate & wing optical in stock.

Minimum Order: 1 sets

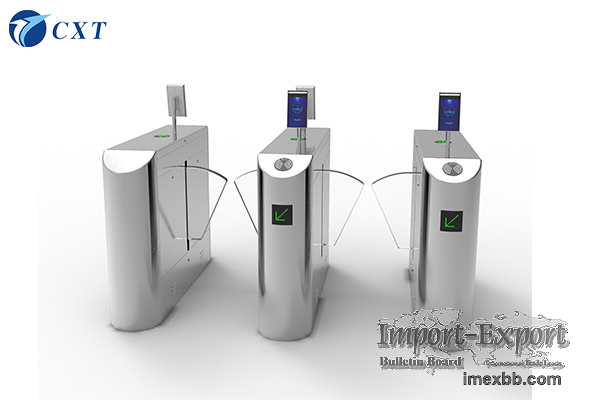

Inclined Surface Flap Barrier Gate YW120YX
