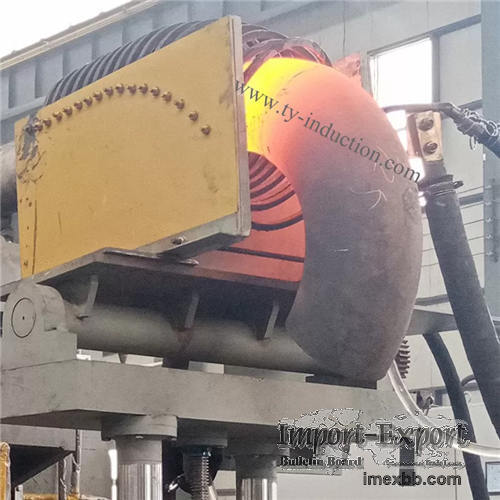

Induction Elbow Making Machine

Induction elbow is a hot forming process to produce elbows of pipeline.  the
IGBT Induction Heating technology is the cost-effective way for hot forming of
elbow. TY Induction provides a full line of induction elbow forming
equipment for every budget. A complete sets of induction machine includes
induction heating system, cooling system, hydraulic bending machinery, infrared
thermometer and PLC control system with friendly HMI. The forming process is
continuous and automated and uses inductors to progressively heat mandrel.
Induction elbow equipment involves Industries such as Petrochemical, Oil and
Gas, Chemical, Construction (airport, bridge, subway), Shipbuilding,
Infrastructure and Power Generation, etc.
Induction Elbow Making Machine Features
● Can bend pipes and beams in different material: Carbon & Alloy steel,
Stainless steel
● Can bend different type of pipes: Seamless pipe & Welded pipe
● Pipe heated uniformly by Induction Machine brings Good Quality of the
bends: Very less Distortion, very less Wall Reduction and good quality.
● Pipe heated fast by Induction Machine brings High Efficiency, Low operating
cost and low energy consumption
● Can be operated in Auto & Manual mode
● Whole machine is controlled by PLC with touch panel.  Speed can be
monitored on the control station.
● Infrared Thermometer controls heating temperature and can Record
● Central Control station control induction heating, hydraulic system and
speed, heating current, oil pressure, speed can be inspected on the control
station.
● Hydraulic control for pipe pushing, pipe clamping, clamper open and close.
● Equipped with infrared thermometer to inspect heating temperature.
Work with TY INDUCTION for induction heating systems that redefine efficiency,
precision, and durability across diverse industries. Experience the future of
bending solutions tailored to your unique needs.
