Industrial computer panel pc all in one with i5-6500 or i7-6700 cpu

IPC-15i7 is a high performance 15" Panel PC industrial all in one version
supports i5-3470 i3-3240 and i7-3770 Processor with touch screen option, DVI,
VGA , Audio, 2 Lan, 6 USB, preload sata SSD 128G and 4G RAM, the size for them
are optional, Optional to equipped 6 COM 5x RS232 and 1x RS485/422, OEM is
accpted for industrial Automation equipments. Supports Microsoft® Windows 7/8,
Microsoft ® Windows 10, Linux. It is suitable for any harsh industrial
environments.
Specifications
Main System
CPU Intel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz FSB
Chipset Intel H61 chipset
System Memory 1x DIMM DDR3 800/1066/1333 SDRAM up to 8 GB; Preload 2GB RAM
LAN 2x Realtek® RL8111x (Gigabit ) 10/100/1000Ethernet
HDD (hard disk ) 2.5" SATA HDD; Preload 320GB HDD
Audio Realtek® ALC662, 5.1 channel surround Audio
I/O Connector 5 x RS-232
1 x RS422/485
1x DVI-D port
1x PS/2 (Keboard/mouse)
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
6x USB2.0
1x 3Pin DC power input terminal block
Expansion 1xPCI Express x16 Slot, 1 x Mini PCIe slot
General
Construction Aluminum front bezel and Aluminum chassis
Color Black or OEM(>=100 units)
OS Support Windows 10/8/7, Windows XP, Linux
Mounting Panel mount or Standard VESA 75/100mm
Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating
92W
LCD display
Display type 15" XGA TFT LCD LED Backlight
Resolution 1024 x 768 pixels
Luminance 450 cd/m2
Viewing angle 160°(H) , 160°(V)
Touchscreen
Type Analog Resistive 5-wire
Controller Interface Internal USB interface controller
Resolution Continuous
Light Transmission 81% or more
Operating Force ≤100g
Life Expectancy 35 Million
Environmental
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% to 95% @40°C non-condensing
Vibration 17 to 500HZ 1G PTP
Operating Shock 1G /peak ( 11m sec)
Ingress Protection Front panel: IP65
Packing info
Dimensions(WxHxD) 406 x 312 x 90mm
NET weight 8.5 KG

CPU Description
Intel® Core™ i3-3240 Processor (3M Cache, 3.40 GHz)
Intel® Core™ i5-3470 Processor (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-3770 Processor (8M Cache, up to 3.90 GHz)
Other LGA1155 socket CPU options

Minimum Order: 1 pieces

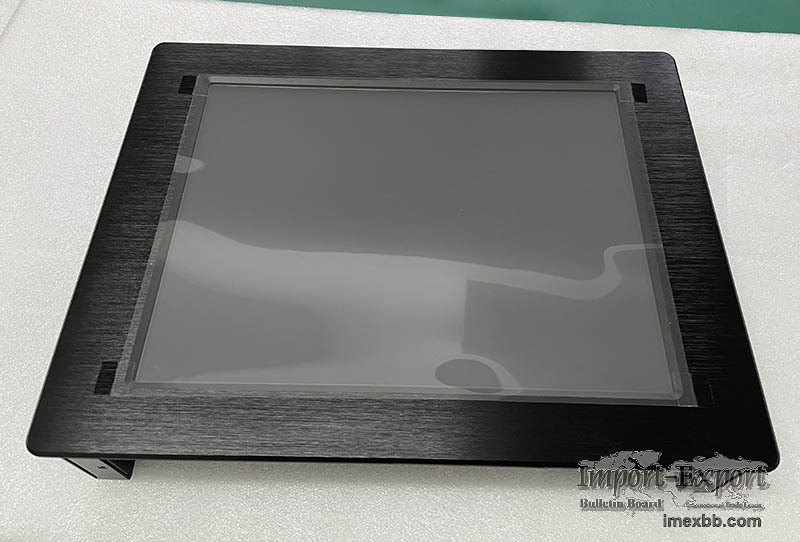

Industrial computer panel pc all in one with i5-6500 or i7-6700 cpu
