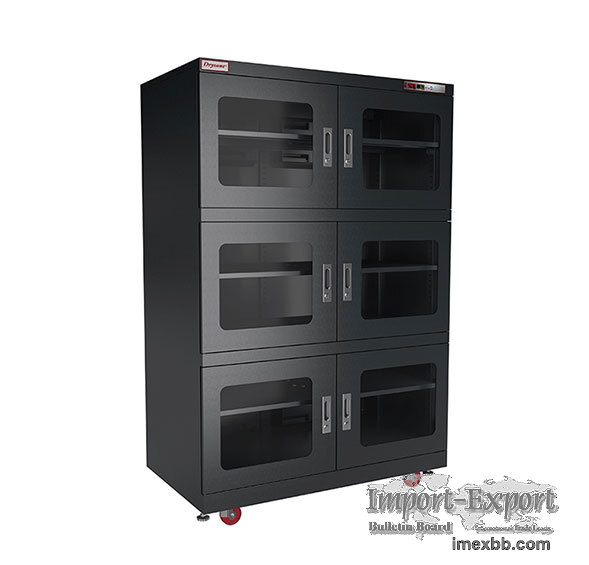

INDUSTRIAL DRYING CABINET

Dryzone Industrial Drying cabinets are designed for electronic gadgets and
valuable collections, PCB (printed circuit boards)/IC/BGA/MSD(moisture-
sensitive materials) 2, 2a, 3, 3a, 4, 4a different levels of components
could find the right dry cabinet in Dryzone and with the Auto baking dry
cabinet, the components floor life could be reset. With the patented dryer
unit D10, the esd dry box cabinet could provide fast and efficient
dehumidification ability, and the lifetime of the dry storage cabinet could
also last 10 years.

TYPES OF COMMERCIAL & INDUSTRIAL DRYING CABINET FOR SALE
<1 Rh Ultra Low Dry Cabinet CF1 Series
<5% Rh Dry Cabinet C2E Series
1-50% Rh Dry Cabinet C1U/C1B Series
15-50% Rh Dry Cabinet C15U/C15B Series
<1 Rh Ultra Low Dry Cabinet CF1 Series

CF1-1200-6<1% rh Ultra Low Dry Cabinet Cf1 Series

Humidity Range: <1%RH, Auto

Outside Dimension: W1200*D672*H1820MM

Internal Dimension:W1198*D644*H1618MM

Capacity: 1250L

Shelves: 5 shelves Power

ESD Paint

Voltage: 230V/110V

Consumption:135w/h(Ave);425w/h(Ma , x)

INDUSTRIAL DRYING CABINET DEHUMIDIFICATION THEORY
Dryzone industrial drying cabinet absorbs moisture in the dry cabinet
through the imported material (molecular sieve) physically, after
saturation, heating, and the memory alloy opening, and closing, the moisture
is exhausted in the form of water vapor. Thus repeatedly, until it reaches
the IC program set the humidity value on the LED.


WHY DRYZONE INDUSTRIAL DRYING CABINET?

Why Dryzone Industrial Drying Cabinet?
Display temperature & humidity values at the same time
Display Precision:±3%RH;±1℃

Built-in flash & buzzer alarm（option)

Excellent Airtight Cabinet Body
Toughened safty glass window

Special design steel structure with excellent air tightness

Excellent Dryer Unit
PPS material: Compare to ABS material cover which is easy to catch fire,PPS
material tolerance heat up to 230°C to avoid any deforming or melt down of
the dryer unit

Fire-resistance material certificate.

Regenerate dehumidifying material

Imported European molecular sieve which could recycle

used for years.

Modular design : easy maintenance and upgrade

Flexiable Adjustable Shelves
The distance between shelves is adjustable and the shelves could be moved
away or add more shelves as you need.

Minimum Order: 4000 sets
