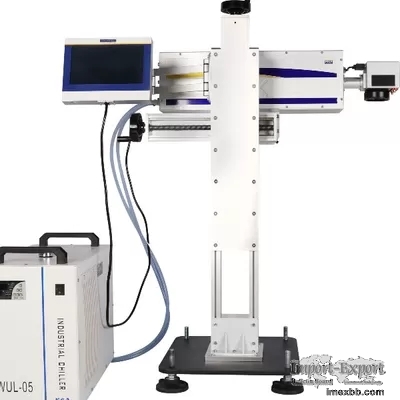

Industrial Ultraviolet UV Laser Marking System Multifunctional High Perform

Multifunctional High Performance Industrial Ultraviolet UV Laser Marking
System



The pharmaceutical, medical device, and cosmetic industries can utilize UV
laser marking machines to deter tampering and counterfeiting, helping to
ensure lifetime brand protection and traceability.



Why choose a UV laser?

Safety and integrity for sensitive and critical materials
Hygiene and sterility for UV laser marked medical plastics
Filigree and high-contrast markings with 355 nm and small beam diameter
Solvent and additive-free marking of plastics
Low-maintenance due to an efficient air-cooled design and long-lasting
optical components
360° Arc Compensation Software enables consistent high-quality marks on
rotational devices, virtually eliminating distortion



What materials can be marked by UV laser machines?

HDPE, LDPE
Other high-density plastics
Synthetic fiber materials
Acrylic
Glass
Silicone
PE and PPE
Automotive parts



Unique Design

Compact design with stainless steel, anodized aluminum materials.



Intelligent

RS-232/422, Ethernet (TCP/IP), Synchronizer and electric eye trigger input
interfaces, etc.



Performance

Stable, fast printing, and good running modes.



Safety

separate switches which can control the power on and off independently.



Fonts

All windows fonts, all barcodes, support varieties of formats of graphics
files.



Well Printing

Well-proportioned thickness, clear and complete markings; not offset, no
font skew & double shadow.



Laser Type

﹡Ultra-violet laser, λ=355nm, UV-YAG

﹡MTBF>=20,000 hours

Model F2003 F2005 F2007 F2010
Power 3W 5W 7W 10W
Line Speed* 10000mm/s


Printing Features

﹡Characters Height: 0.4mm to 70mm

﹡Number of Lines: Limited only by character height and allowable print area

﹡Marking area :110mm*100mm to 650mm*650mm

﹡Minimum line width: 0.01mm



Marking Data

﹡Serial number, text, date, time, fonts, etc.

﹡Multi - language support, user - defined fonts, counter, shift code

﹡Codes Support: Barcode, QR-code, Code128, Code 39, Data-Matrix Code,

﹡Document Type: BMP/DXF/HPGL/JPEG

﹡Graphic Element: Points, lines, arcs, rectangles,

polygons, ellipses, circles



Communication Interface

﹡Rs-232, Ethernet (10/100 Mbit), USB port, SD card

﹡I/O: PN/PNP/24V – detector

﹡Speed Detection: Encoder or synchronizing signal

﹡Input Signal: Start, stop, interlock

﹡Output Signal: Status indication, cooling device control, machine remote
control.



Other Characteristics

﹡Outlooking: Stainless steel support structure,

anodized alumina.

﹡Power: 90-264V AC,47-63Hz,800W

﹡Cooling system: Air cooling

﹡Operation Environment: -6-45℃,10%-90%RH, non-condensing

﹡Ip Rating: IP54;



Operation Interface

﹡10.1inch touch screen, QWERTY or AZERTY virtual keyboard, quick icon
wizard operations, online help



Accessary

﹡Fume extractors

﹡Complete stand bracket

﹡Encoder & Photocell

﹡Alarm
