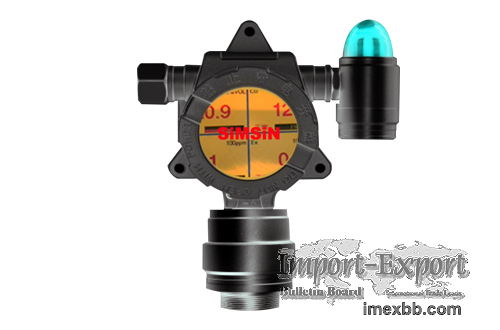

Industrial Wired SO2 Gas Detector

Product name: Industrial Wired SO2 Gas detector
Model No：SS-ENVIR-SO2WD4P
Product Description:
Industrial grade explosion-proof type sulfur dioxide detector, can use the
standard modbus-rtu communication protocol in flammable and explosive places,
via RS485 wired transmission
Main Application:
All kinds of chemical, petroleum, medicine, military, experimental bases and
other flammable and explosive places.

Model No:SS-ENVIR-SO2WD4P
Product type
Industrial grade explosion-proof sulfur dioxide detector
Product description
Industrial grade sulfur dioxide detector, can use standard modbus-rtu
communication, protocol in flammable and explosive places, via RS485 wired
transmission
Scope of application
With explosion-proof function, can be used in explosive areas

Functional characteristics
1.Built-in high-quality sulfur dioxide sensor, high precision, strong
stability, low error rate
2.Industrial grade, support 24 hours of continuous online all year round
3.IP66 super high explosion-proof rating
4.Full range temperature compensation, long-term stability and reliability of
measurement values
5.Automatic correction

Technical Parameters
1.Linear error: ≤±2%
2.Gas production mode: natural diffusion
3.Operating temperature: 0℃ ~ +50℃
4.Working pressure: 86 ~ 106Kpa
5.Wide voltage: 24VDC(9-30VDC)
6.Detection range: 0-1000ppm range
7.Resolution: 1ppm

Click to Enlarge
