IngersollRand Air Motors

IngersollRand Air Motors are available in a broad range of speeds, torques
and power and are the most widely used type of air motor. Smaller, lighter
and less expensive than piston motors of similar power. Due to their simple
design and construction, they can be operated in most any position.

Product Introduction
Advantages:
Infinitely variable speeds and torques
Instant starting, stopping and reversing
Will not overheat or burn out
Safe operation in hazardous conditions
Cool running characteristics minimize the effects of hot, wet or dusty
surroundings
Low maintenance
Excellent design flexibility
Temperature range: Up to 150°F with standard lubrication and up to 300°F
with high temperature lubrication

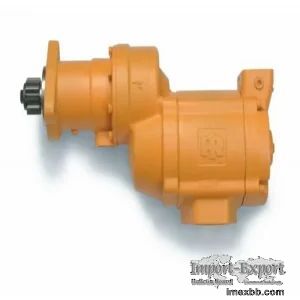

SS815GB03R31-310 Vane Air Starter by Ingersoll Rand
Features
All models sealed for use in air or gas applications at IngersollRand
supplier
Offset design for simple mounting
Powerful 80 hp motor
Multiple offset gear ratios: B = 2.18:1; C = 2.53:1; D = 3.44:1
Backcap ports for injection lubricating
Versatility
Inertia (SS810) and pre-engaged (SS815, SS825, and SS850) starters
available
4 inlet, 4 exhaust, and 16 drive housing orientations
90-150 psi (6.2-10.3 bars) operation
Remanufactured starters available
Left- and right-hand rotation available

Ingersoll Rand 8231-9B Reversible Air Power Motor Planetary Gear 0.50 HP
475 RPM 19.40 (lb-ft) Stall Torque Double Gear Reduction
TYPE: Air Motor
SPINDLE KEYED (IN.): 3/8
FREE SPEED (RPM): 475
LOAD SPEED @ MAX HP (RPM): 240
STALL TORQUE (FT-LBS): 19.40
STALL TORQUE (NM): 26.2
TORQUE OUTPUT @ MAX HP (FT-LBS): 11.00
TORQUE OUTPUT @ MAX HP (NM): 14.9
AIR CONSUMPTION @ FREE SPEED (SCFM): 32
AIR CONSUMPTION @ FREE SPEED (L/S): 15.1
SOUND LEVEL @ FREE SPEED DB(A): 80
GEAR REDUCTION: Double

Ingersoll Rand M007RHR275BR6 Multi-Vane Non-Reversible Air Motor Planetary
Gear 0.76 HP 70 RPM 140 (lb-ft) Starting Torque 187 (lb-ft) Stall
Torque
TYPE: Air Motor
POWER (HP): 0.76
POWER (KW): 0.57
SPEED @ MAX POWER (RPM): 35
FREE SPEED (RPM): 70
STARTING TORQUE (LB-FT): *140.0
STARTING TORQUE (NM): *190.0
STALL TORQUE (LB-FT): *187.0
STALL TORQUE (NM): *254.0
AIR CONSUMPTION @ MAX POWER (SCFM): 36
AIR CONSUMPTION @ MAX POWER (M³/M): 1.02

Ingersoll Rand MVA034B Multi-Vane Reversible Air Motor Direct Drive 4.15
HP 6,250 RPM 8.3 (lb-ft) Starting Torque 12.8 (lb-ft) Stall Torque
TYPE: Air Motor
POWER (HP): 4.15
POWER (KW): 3.09
SPEED AT MAX. POWER (RPM): 3,000
FREE SPEED (RPM): 6,250
STARTING TORQUE (LB-FT): 8.3
STARTING TORQUE (NM): 11.3
STALL TORQUE (LB-FT): 12.8
STALL TORQUE (NM): 17.4
AIR CONSUMPTION @ MAX POWER (SCFM): 181
AIR CONSUMPTION @ MAX POWER (M³/M): 5.12

Ingersoll Rand 8228-8B Reversible Air Power Motor 0.50 HP 350 RPM 25.00
(lb-ft) Stall Torque Double Gear Reduction
TYPE: Air Motor
SPINDLE KEYED (IN.): 1/2
FREE SPEED (RPM): 350
LOAD SPEED @ MAX HP (RPM): 185
STALL TORQUE (FT-LBS): 25.00
STALL TORQUE (NM): 33.9
TORQUE OUTPUT @ MAX HP (FT-LBS): 14.00
TORQUE OUTPUT @ MAX HP (NM): 19.0
AIR CONSUMPTION @ FREE SPEED (SCFM): 30
AIR CONSUMPTION @ FREE SPEED (L/S): 14
SOUND LEVEL @ FREE SPEED DB(A): 80
GEAR REDUCTION: Double

Ingersoll Rand M002RVR000AR3 Multi-Vane Reversible Air Motor 0.2 HP
23,000 RPM 0.13 (lb-ft) Starting Torque 0.18 (lb-ft) Stall Torque
TYPE: Air Motor
POWER (HP): 0.2
POWER (KW): 0.15
SPEED @ MAX POWER (RPM): 11500
FREE SPEED (RPM): 23000
STARTING TORQUE (LB-FT): 0.13
STARTING TORQUE (NM): 0.18
STALL TORQUE (LB-FT): 0.18
STALL TORQUE (NM): 0.24
AIR CONSUMPTION @ MAX POWER (SCFM): 9.8
AIR CONSUMPTION @ MAX POWER (M³/M): 0.28

We, a Hydraulic Component supplier, also offer the following products, such
as Imtex Control, DYNEX, Bifold and so on. Welcome to get in touch with us,
as a Special equipment and dedicated accessories distributor, Bingde is
prepared to help you with qualified products.
