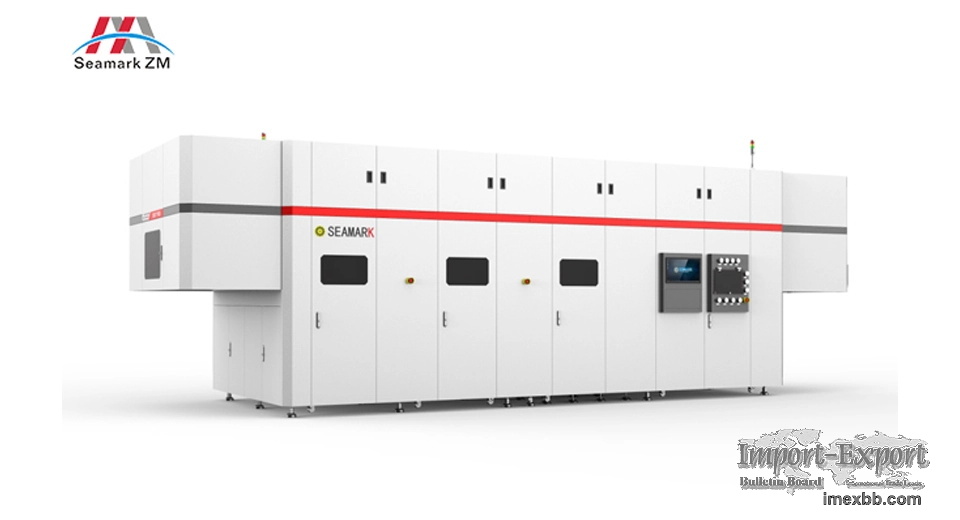

Inline Inspection Machine for Winding Battery

Seamark has three models of automated x ray inspection machines: the XB7100,
XB7300, and XB8100. Inline automated X-ray inspection machines are popularly used
for different kinds of winding batteries. For example, XB7100 achieves fully
automatic x ray inspection of multi-layer winding power batteries, inspecting the
alignment of positive and negative electrode plates, large surface folds, tab
pulling pins, etc. of winding power and energy storage batteries. XB8100 is
compatible with φ14-φ46mm cylindrical batteries. In order to meet the inspection
requirements of multi-layer high efficiency under different diameters, area array
sampling technology or TDI line scanning sampling technology is selected. The
inspection contents include angle overhang, resistance value, conductivity, etc.

Winding Inline Inspection Machine Types
XB7100-Winding Battery Inspection
The Full Auto Series XB7100 is specifically designed for multi-layer winding power
batteries, ensuring efficient and precise inspections for superior quality
assurance in the battery industry.

XB7300-Digital Battery Inspection
The Full Auto Series XB7300 is tailored for digital soft pack batteries, providing
specialized and automated inspections to ensure the highest quality standards in
the manufacturing process.

XB8100-Cylindrical Battery Inspection
Full Auto Series XB8100, compatible with Full Auto Series XB8100 is designed to
handle cylindrical batteries with diameters ranging from φ14 to φ46mm, providing
versatile compatibility for various battery manufacturing needs and ensuring
efficient inspection processes.

For more information about automated industrial x ray systems, please feel free to
contact us!

If you are looking for a reliable x ray inspection machine manufacturer, don't
hesitate to contact us!

Minimum Order: 500 sets
