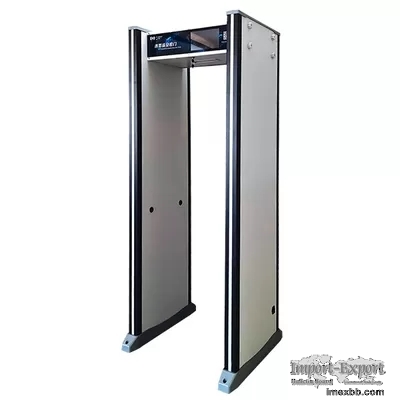

Intelligent Metal Detector Walk Through Gate

PRODUCT DESCRIPTION
10.1-Inch Screen Display Metal Detector Walk Through Gate

The intelligent contraband security check gate adopts advanced
electromagnetic compatibility and anti-vibration design, featuring AI
intelligent analysis, strong anti-interference capability, and earthquake
resistance. It is suitable for the security inspection of controlled
electronic products, knives, firearms, and other dangerous items. It is
widely used in prisons, courts, schools, hospitals, electronics companies,
ports, transportation stations, exhibition halls, conference centers, major
events, concerts, and other important venues.

10.1-Inch Screen Display Metal Detector Walk Through Gate

Product Features:

Multiple Zone Technology: Multiple overlapping detection zones.
Interference Resistance: 12 adjustable working frequency bands, multiple
devices can alarm simultaneously.
Magnetic Field Segmentation Principle: 8 grid-like magnetic field
distribution, independent detection, real-time calculation.
UPS Backup Power: Multiple options for 6 hours/12 hours/24 hours backup
power.
Safety: Harmless to individuals wearing pacemakers, pregnant women, and
magnetic media.
Detection Capacity: Capability to detect and process over 60-150 individuals
per minute.
Interlocking Function: Integration with access control systems to manage
alarmed individuals.
Modular Design: Easy maintenance and updates.
Signal Visualization: Graphical display of detection signals for clear
device status monitoring.
Intelligent Imaging: 29-inch screen for direct observation.

Product Advantages:

Smart Recognition: Automatically identifies and excludes everyday items
during smartphone detection.
Wide Door Panel Design: Stable, robust, durable, and non-deforming housing.
Automatic Calibration: Equipped with an automatic calibration mode to adapt
to the installation site and eliminate interference.
Signal Visualization: Graphical display of detection signals for clear
device status monitoring.
USB Upgrades: Application software can be upgraded via USB or SD card.
Multi-zone Alarm Function: 8 zones on each side, indicating the location of
the alarmed smartphone.
Modular Component Design: Convenient and quick for transportation and
maintenance.
Multiple devices can work side by side with a minimum distance of 80cm-
100cm.
Optional thermal imaging system for temperature measurement.

10.1-Inch Screen Display Metal Detector Walk Through Gate

Parameter Specification
Transport Weight Approximately 65kg
Power Consumption Less than 30W
Operating Temperature -20℃～+55℃
Operating Humidity 98%, non-condensing
Operating Frequency Adjustable based on installation environment
External Power Supply AC 100V~240V 50/60Hz
Operating Frequency Adjustable based on installation environment
Dimensions H2210mm x W860mm x D780mm
Passage Dimensions H2000mm x W700mm x D430mm

10.1-Inch Screen Display Metal Detector Walk Through Gate against the
technical parameter :
Fully compliant with CE, FCC, and RoHS certifications.
Radiation compliance according to EN50081-1 standard.
Anti-interference compliance according to EN50082-1 standard.
Certified with ISO9001:2008 quality management system.
Certified with ISO14001 environmental management system.
Certified with OHSAS occupational health and safety management system.
Strict adherence to GB15210-2003 national standard for walkthrough metal
detectors.
Detecting Prohibited Items
1. Firearms and Ammunition: Including handguns, rifles, shotguns, bullets,
etc.
2 .Knives and Blades: Such as daggers, knives, swords, stilettos, etc.
3. Explosives and Bombs: Including bombs, explosives, fireworks, etc.
4. Offensive Weapons: Such as clubs, batons, stun guns, etc.
5. Defensive Equipment: Such as bulletproof vests, stab-proof vests, hazmat
suits, etc.
