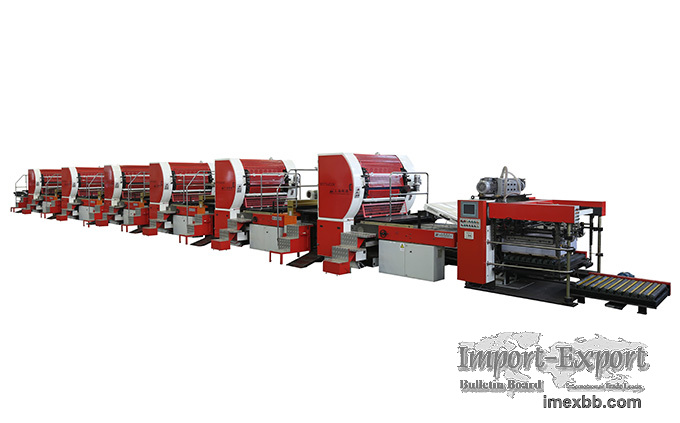

Intelligent RYYT 453 Series Metal Printing Machine

China's first intelligent metal printing machine comes from RYYT 453 series.
Especially the upgraded 453 series achieve full automation, the series of metal
printing press is intelligence, digital, and information, provide users with
high efficiency, high performance, low cost of automatic metal printing
production line. RYYT 453 series include 1 color offset printing machine, 2
colour printing machine, 3 colour offset printing machine, 4-colour, multi-
color metal printing presses and as one of the metal offset printing presses
manufacturers we sell 1-color, 2 color printing machine, 3-colour, 4-colour,
multi-color machines at a suitable price.

RYYT 453 Series Multi Color Printing Machine Main Technical Performance
Centralized control system

Central remote console, centralized control, simple and efficient operation.

Automatic sheet size change

Input the sheet size in the centralized control system, press the “Confirm”
button to finish the multi-printing adjustment of the pusher and side lay.
Also, can a fine adjustment of the side lay in running mode, reduce manpower
and higher efficiency.

Gripper front lay remote control device

The centralized control system can accurately and fast finish the fine
adjustment of the front lay in running mode, it also can improve the
efficiency.

INKPRO Ink fountain remote control system

Directly presetting the CIP3 date into the ink console, automatically preset
the ink quantity. Then complete the ink set, through the 36 ink color sections
to remotely adjust the quantity of ink in each area. The memory storage
function of multiple order data presetting and read the setting data is
necessary automatically. In addition, it can complete the closure of the whole
ink key, also has the function with a one-button sheet closing system. Saving
the time of ink mixing, with higher efficiency, reduce the chromatic aberration
of different batches

Auto ink wash-up device

Finish the multicolor printing press units or single-printing press unit ink
wash up by one button, saving the cost of cleaning agent, reduce workforce,
saving the washing time by about 35 minutes with high efficiency and green
environmental protection

Alcohol dampening system

composed of an alcohol box with temperature control function, water rollers,
and a heat preservation sink with liquid level detection function, ensuring
uniform, stable and reliable water on the layout

Electric feed

Through the button and electric motor control, the feeder can be adjusted to
move left and right, forward and backward to achieve the optimal feeding
position, which saves manpower and is easy to operate.

Innovative Solutions of the Upgraded 453 Series
Digital sheet-change system by one button
Input the sheet size and thickness into the centralized control system,
directly set up by one button: finish from the feeder - in feed - main motor -
UV curing - stacker's all the gauge distance and printing cylinders press
adjustment within 3 minutes, saving 37 minutes by the sheet-change system, with
higher efficiency.

INKPRO Ink fountain remote control system
Directly presetting the CIP3 date into the ink console, automatically preset
the ink quantity. Then complete the ink set, through the 36 ink color sections
to remotely adjust the quantity of ink in each area. The memory storage
function of multiple order data presetting and read the setting data is
necessary automatically. In addition, it can complete the closure of the whole
ink key, also has the function with a one-button sheet closing system. Saving
the time of ink mixing, with higher efficiency, reduces the chromatic
aberration of different batches.

Auto ink mixing device
Mixing ink device controlled by the centralized control system to mix ink
automatically. Improve ink fluidity, reduce workforce, ensure ink uniform, ink
more stable in normal production.

Centralized control of dampening water system
Real-time detection and automatic adjustment of the alcohol concentration of
dampening, temperature, and conductivity data to keep the dampening water
system stable, and helpful for high-quality printing.

Temperature control of the ink delivery system
Achieved ink constant temperature, keep the ink tack & viscosity stable,
improve the quality of printing through heating or refrigeration control
system, it also has the memory storage function and read when necessary.

Automatic blanket scrubbing device
Multi-printing units blanket can be cleaned at the same time by one-button
control, which can reduce workforce and saving about 19 minutes with normal
wash time, get the higher efficiency and protect the environment.

Test sheet management system
Save workforce and improve efficiency by test sheet management system.

Online monitoring
Online video monitoring, monitoring the differences with self-learning
function, and reject the unqualified products automatically, ensure the
unqualified products do not flow into the next process.

Automatic VAC Stack
To achieve non-stop production, one box is used for collecting unqualified
products, the other two boxes receive the sheet change-over freely. After
meeting the set collection quantities, it can land and output the sheet
automatically, when receiving the pallet and rising automatically to prepare
for receiving the next sheet, without any operator set up. It's very
intelligent and convenient.

Automatic feeder of pallets
The device completes collection and separation of the pallet automatically,
feeder moves the pallet to the stacker position automatically, without any
operator set up, It's very intelligent and convenient.

As one of the most professional offset printing machine manufacturers in
china,, we provide metal decorating press, multicolor offset printing machine,
multi colour offset printing machine, offset multicolor printing machine, etc.
Want to know more? please contact us.

Minimum Order: 1 sets
