IP65 Waterproof Panel Light

Can reach IP65 waterproof grade.
AL6063 aluminum housing
Flat frame design,without any gap at 4 corners.
Using PMMA light guide plate,up to 90% light transmittance

Features
1.Adopt IP65 waterproof power supply and connector,the panel light can reach
IP65 waterproof grade.
2. AL6063 aluminum housing,13mm thickness,very stronge stuctrure,not easy to
bend during using.
3. Flat frame design,without any gap at 4 corners.
4. Using PMMA light guide plate,up to 90% light transmittance,long life time up
to 50,000 hours.
5. Bending back cover design to prevent light leakage from back side.
6. Special waterproof foem installed at the front side between aluminum housing
and diffuser,also at the back side between the back cover and LGP,to achieve
the waterproof effect.
7. Three installation types:Recessed,surface and suspendent.

Parameter
Model CCT Lumen
(lm±10%) LED TYPE Power
(±10%) Input voltage CRI PF Value Protection
grade
ip65 panel light
18W 6000-6500K 1656 4014 18W 100-240V
50/60Hz ≥80 >0.9 IP65
IP65 Waterproof Panel Light 18W 3800-4200K 1656
IP65 Waterproof Panel Light 18W 2800-3200K 1476
IP65 Waterproof Panel Light 24W 6000-6500K 2184 4014 24W 100-
240V
50/60Hz ≥80 >0.9 IP65
IP65 Waterproof Panel Light 24W 3800-4200K 2184
IP65 Waterproof Panel Light 24W 2800-3200K 1968
IP65 Waterproof Panel Light 40W 6000-6500K 4000 4014 40W 100-
240V
50/60Hz ≥80 >0.9 IP65
IP65 Waterproof Panel Light 40W 3800-4200K 4000
IP65 Waterproof Panel Light 40W 2800-3200K 3600
IP65 Waterproof Panel Light 40W 6000-6500K 4000 4014 40W 100-
240V
50/60Hz ≥80 >0.9 IP65
IP65 Waterproof Panel Light 40W 3800-4200K 4000
IP65 Waterproof Panel Light 40W 2800-3200K 3600
Dimensions(Unit:mm/inch):

Download
N , ame Update date Document Download
Specification of IP65 Waterproof Panel Light 2019.10.29 1.45MB

Signcomplex offers strip led lighting products, providing various led light,
including LED flood light, wall washer, projector light, waterproof LED strip
and so on, for landscape lighting.

Minimum Order: 1 pieces

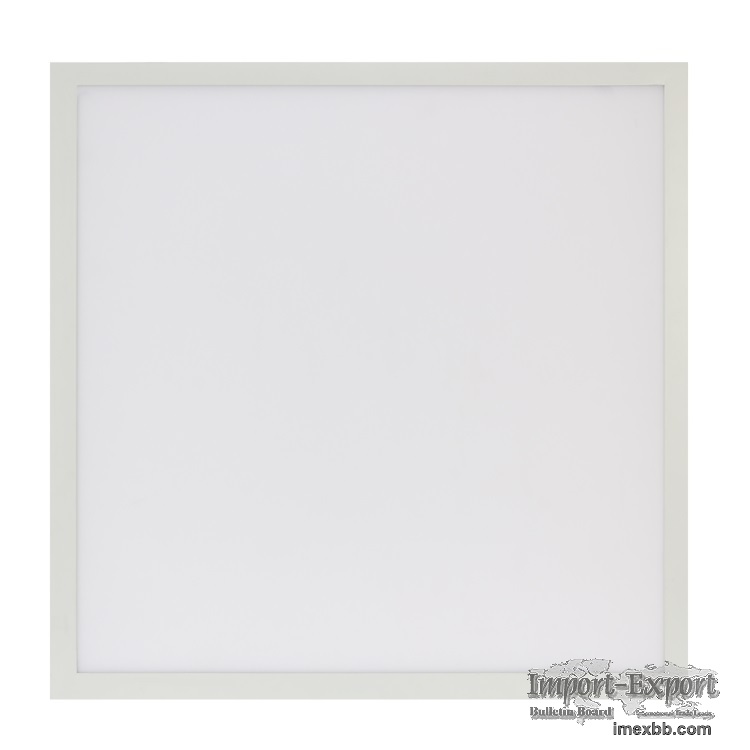

IP65 Waterproof Panel Light
