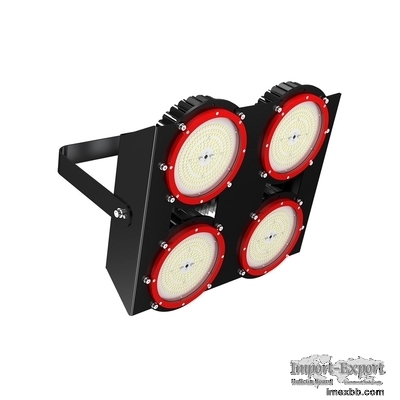

IP67 Explosion Proof LED Lights 150Im High Temperature 10-150W

Led Ul Certificate 844 Ip67-Explosion Drop Fitting As Ab 50 Ev35 Explosion
Proof Light High Temperature light

High Temperature HB Series
Features:
Venas High Temperature High Bay Light, which is applied to ambient high
temperature working area where operation temperature may reach 158℉(70°C),
such as steel plant, aluminum smelter, and other high-temperature, dust,
corrosive gas environment.
The HB Series high heat resistant lights combine optical performance energy
efficiency and outstanding versatility to meet the requirements of high
temperature lighting applications in high-temperature, dust, corrosive gas
environment, delivering a wide range of light outputs. The enclosure body is
made of aluminum with corrosion-resistant coating which protects against
overheating damage.

Specifications:
Model HB-xxxW-D1YZDG HB-xxxW-D2YZDG HB-xxxW-D4YZDG
Power 10-150W 100-300W 300-600W
Voltage AC127-270V/AC347-480V,50/60Hz
Efficiency 150Im/W
CRI >70
Beam Angle 20°-120°
CCT 2200k-7000k
Amebient Temperature 40℉ to + 158℉(-40℃ to +70℃)
IP Rating IP66/IP67
IK IK09
LED Chip 5050/3535/3030


Pccking Information
Model Quantity/Carton Packing Size(mm) N.W(KG) G.W(KG)
HB-xxxW-D1YZDG 1 340*340*550 8 9
HB-xxxW-D2YZDG 1 380*670*306 16 17
HB-xxxW-D4YZDG 1 696*675*306 32.25 33.25
IP67 Explosion Proof LED Lights 150Im High Temperature 10-150W 0


Dimension
Unit:mm or inch
HB-xxxWD1
IP67 Explosion Proof LED Lights 150Im High Temperature 10-150W 1
HB-xxxWD4
IP67 Explosion Proof LED Lights 150Im High Temperature 10-150W 2

Ordering Guide
IP67 Explosion Proof LED Lights 150Im High Temperature 10-150W 3

Mounting Methods
No.1 Hook Pendant Mounting
IP67 Explosion Proof LED Lights 150Im High Temperature 10-150W 4
No.2 Bracket Mounting
IP67 Explosion Proof LED Lights 150Im High Temperature 10-150W 5

FAQ

Q1. Can I have a sample order ?

Yes, we welcome sample order to test and check quality. Mixed samples are
acceptable.
Q2. Do you have any MOQ limit for order?
Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
Airline and sea shipping also optional.
Q4. How to proceed an order ?
Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly,customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
