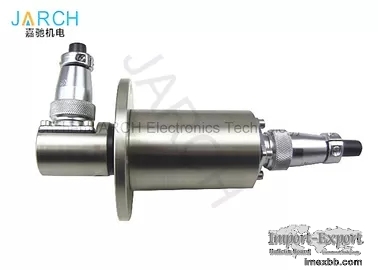

IP68 Flange Waterproof Slip Ring

Product Description
JARCH IP68 flange mounted Waterproof operation underwater working Slip Rings
use Aero plug connection
Product Description


***The interior adopts the precious metal brush wire structure, with long
service life and no maintenance.

***Can work 10 meters underwater or work outdoors

***No internal holes, flange connection
***Stator rotors are connected by aviation plugs, no wires

Designed for underwater operations, waterproof work and design.
Industrial grade products, stator flange/shaft, IP65, IP68 protection class.
Gold - gold contact, the use of imported seals and military grade plating
treatment.
Multi-point contact contact, outlet using waterproof Glen, cable and so on.
Can be customized according to the requirements.


Technical Data
Circuits No 6 Circuits Current 5A
Voltage 440 VDC/VAC Max speed 300RPM
Housing material Stainless steel Torque 0.1N.m;+0.03N.m/6 circuits
Working life
>80millions revolutions(depends

on working speed,environment)

Contact material Precious metal:gold-gold
Electrical Noise <10mΩ @6VDC,50mA,5RPM Contact Resistance
<20mΩ(AWG16#,300mm)
Dielectric Strength 800VDC@50Hz,10s Lead wire Spec UL
Teflon@Awg22(5A),Awg16
Insulation Resistance 1000MΩ@600VDC,10s Lead wire length 300mm
Work Temperature -40℃ to 85℃ IP grade IP68
Mechanical vibration MIL-SID-810E Work Humidity 10% to 85% RH
Signal 6 Signals Underwater operation depth 10 meters
Inside material precious metals Certificate CE,FCC


IP68 Flange Waterproof Slip Ring 0



Waterproof Slip rings are designed specifically for underwater operarion
equipment, on board equipment and waterproof work.



Advantages of waterproof slip ring:



1. Industrial grade products:IP65.IP68 protection grade;

2. Gold to gold contact: adopting imported seals and military grade plating
treatment;

3. Multi-point contacts: outgoing line uses waterproof gran circle and cable.



IP68 Shaft mounted underwater working 10m Waterproof operation Slip Rings in
ROV Technical,winch,Underwater equipment



Related Products



1. Fiber optic rotary joint series

2. Through bore slip ring series

3. Electro optical slip ring series

4. Hybrid slip ring series

5. Pneumatic rotary joint series

6. Hydraulic rotary union series

7. Capsule slip ring series

8. Pancake slip ring series

9. High current slip ring seriels

10.High speed slip ring series

11.Thermocouple slip ring series

12.Miniature slip ring series

13.Wind turbine slip ring series

14.Ethernet slip ring series

15.Explosion proof slip ring series

16.Mercury slip ring series



Company Information
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen,
China. JARCH has become one of the best-known Chinese brands in the world for
high quality slip rings and first-rate services. Since we were founded in 1998,
we have been committed to innovating, developing and manufacturing high quality
slip rings and providing perfect rotation solutions for customers around the
world.



Packaging & Delivery:
Packaging Details: Standard Export carton Package for slip rings
Delivery Detail: Sample 3 days / Order depends on quantity
Shipping:BY DHL, FedEx, UPS or TNT......


FAQ



Q1: Are you a factory or a trading company?
A: We are a professional manufactory with High-level R & D team.
Q2: How many types of the slip rings do you have?
A: We can supply all kinds of the slip rings.Such as minitary slip
ring,customized sliring,
miniature slip ring,fiber optical slip ring,RF rotary joint,HD combined-type,
disc slip ring,wind power slip ring,solar power slip ring,through-bore slip
ring, etc.
Q3: Can you supply the slip rings with high frequency signals and(or) optical
communication signals.
A: Yes, we can supply mixed signals slip rings as your request.
Q4: what's the working life of your slip rings.
A: 30~50 millions revolutions for standard ones, 50~80 millions revolutions for
special ones,
We also can supply much higher revolutions as your special requirement.
Q5: Do you supply OEM and ODM ?
A: Yes, we supply OEM and ODM.
Q6: What technical data should be provided for our customized slip ring model.
A: If you want to costomize the special slip ring model, you need provide
details as below:

a.operatring speed(RPM)
b.the type of installation

c.outline size

d.channels(the No. of single wire besides cable)
e.rated voltage & current for power rings and signal rings

f.the signal type and related
parameters(very important)

g.operating temperature h.IP(sealing requirements)

Q7: How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for simple
customized products,
15 to 40 days for complex customized porducts.
Q8: What's your delivery port?
A: Our delivery port is Shenzhen


If you have any other question, pls contact us without any hesitation.
