Irrigator PU Layflat Hose

Inner tube : smooth PU tube
Reinforcement: Circular woven polyester jacket
Cover: ribbed PU cover
Operating Temperature Range: From -60° F to 176° F (-50° C to 80° C)
Standard Length: 50m, 100m, 200m, other lengths available per request

Our lay flat irrigation hose are made from 100% high-strength polyester
circular woven and imported PU compound. We use a single homogenous
construction without any glues or adhesives. Our Irrigator PU layflat hoses is
good in UV resistance and kink resistance.

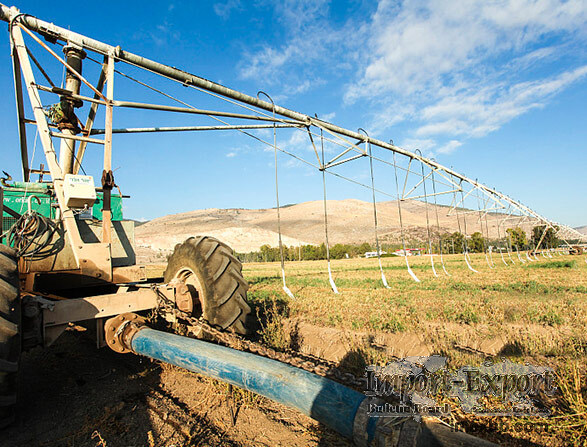

Our lay flat irrigation tube are widely used with irrigator machine and tractor
in agriculture field.

Specification of Irrigator PU Layflat Hose
ID Wall Thickness Weight WP BP
Inch mm Inch mm lbs/ft kg/m PSI/bar PSI/bar
1 1/2" 38+1.5 0.09" 2.2 0.22 0.33 300PSI/20bar 900PSI/60bar
2" 50.8+1.5 0.11" 2.7 0.28 0.41 300PSI/20bar
900PSI/60bar
2 1/2" 63.5+1.5 0.11" 2.7 0.39 0.58 300PSI/20bar
900PSI/60bar
3" 76+1.5 0.11" 2.7 0.5 0.75 250PSI/17bar 750PSI/50bar
3 1/2" 92+2.0 0.13" 3.2 0.65 0.97 180PSI/12bar 540PSI/36bar
4" 103+2.0 0.13" 3.2 0.76 1.14 180PSI/12bar 540PSI/36bar
4 1/2" 117+2.5 0.13" 3.2 0.84 1.25 180PSI/12bar 540PSI/36bar
5" 127+2.5 0.13" 3.2 0.95 1.42 180PSI/12bar 540PSI/36bar
6" 153+2.5 0.14" 3.4 1.16 1.73 180PSI/12bar 540PSI/36bar

SEAPEAK is one of professional hose pipe manufacturers, we provide china pvc
hose, lay flat irrigation hose for sale and etc. Want to know more? Please
contact us.
