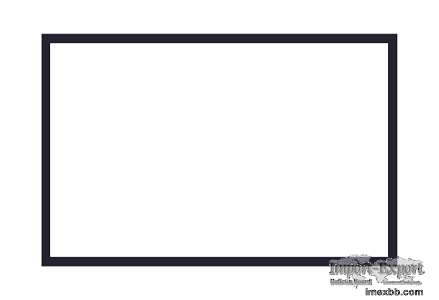

IX5100 Series Large Touch Screen Overlay
Mechanical Specifications
Touch count: 10 points
Available size: 27~86 inches
Glass: 3~6mm toughened glass or no glass
Shell material: extruded aluminum structure or extruded tube structure
Electrical Specifications
Technical principle: Infrared block detection
Touch accuracy: center <1mm, edge <1.2mm
Power supply specifications: USB power supply (DC5V± 5%@500mA)
Power consumption: <1.5W
M T B F: 100,000Hours
Interface Types
USB (default), COM
Large Touch Screen Overlay Environmental Specifications
Temperature: Operation :-20~70°C Storage :-40~85°C
Humidity: Operation :10%-90% RH40°C No condensation
Storage :10%-90% RH40°C no condensation
Electrostatic protection: EN61000-4-2 2008:L4,Class B
Contact discharge 8kV, air discharge 15kV
Light resistance: > 150k Lux(sunlight)
E M C: CE,FCC Class B Compatible
Dustproof and waterproof: front IP66(extruded tube + glass)
Software Specifications
Firmware upgrade: Support
Calibration: Four-point calibration
Device type: Touch mode, mouse mode
Operating system: Windows (xp, 7, 8.1, 10), the Linux (2.6 or higher), Android
(2.6 or higher), Vxwork (6.5 or higher)
)
