J1772 22KW Wall Mounted Smart Car Charging Cable Wifi Connect 32A 3 Phase E

It is easy to install, stable in performance, and provides complete protection
function. The LCD display can show the charging status, user friendly. It
supports 4G/Ethernet/WiFi communication with party system for remote
monitoring/maintain/upgrade. The charger can optionally equip with a column
support installed outdoors.
Simple installation: no complicated installation process is required, it can be
used when power is connected.

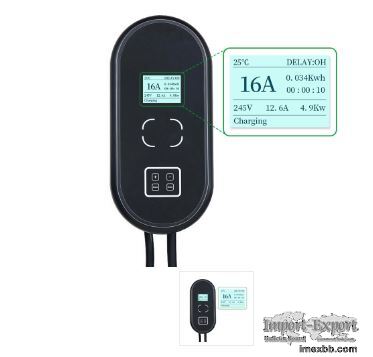

4.3 Inch LCD Display: LCD screen can display the real-time charging status,
including time, voltage, current, power and temperature.

IP55, Strong and Durable: Support outdoor harsh environment,waterproof and
dust-proof. Rugged shell which could resist the rolling and crash of the car.

Easy to install and use: The installation process is simple, payment is
convenient and fast, supports IC card
swiping. Fully compatible with all EV in the market.

Specifications Product Name Portable EV Charger
Plug for EV IEC 62196 Type 2
Plug for Wall Socket Blue CEE plug, red CEE plug, etc.
Electric Parameters Rated Voltage 110V~450V AC
Rated Current 10-32A VC,1 / 3 phase
Frequency 50/60Hz
Insulation Resistance >1000MΩ
Terminal Temperature Rise <50K
Withstand Voltage 2000V
Contact Resistance 0.5mΩ
Mechanical Performance Mechanical Life >10000 times no-load plug in/out.
Coupled Insertion Force 45N~100N
Withstandable Impact Dropping from a 1m-height and running-over by a 2T
vehicle.
Material Enclosure Thermoplastic, flame retardant grade UL94 V-0
Cable Material TPE
Terminals/Pins Copper alloy, silver plating
Safety and Warranty Ingress Protection IP54
Certification CE/ TUV/ UL
Certification Standard IEC 62196-1-2016/ IEC 62196-2-2016
Charging Protection Over current, residual current, short circuit, surge,
over/under
voltage, over/under frequency, and over/under temperature
protection;
Warranty 2 years
Environment Work Temperature -30℃~+50℃
Work Humidity 5%~95%
Work Altitude <2000m
J1772 22KW Wall Mounted Smart Car Charging Cable Wifi Connect 32A 3 Phase E
