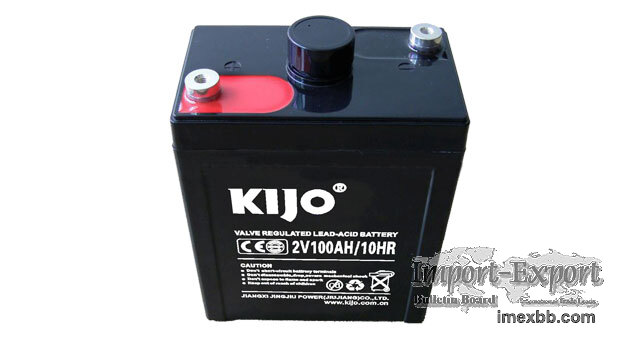

JL Series (AGM Deep Cycle Battery)

JL2V series are renewable energy storage batteries, and adopt high elastic AGM
separator and extra thicker plate with the special paste formula. The batteries
have stable charge and discharge performance, low self-discharge rate, long
service life. They are very suitable for telecom power system equipment use.

Specification of JL Series (AGM Deep Cycle Battery)

Model Rate Voltage (V) Rate Capacity (AH/10Hr) Terminal
Dimension(mm) Weight Terminal
Length Width Height Total Height
mm Inch mm Inch mm Inch
mm Inch KG Lbs
JL2-100 2 100 M6 171 6.73 72 2.83 206 8.11
220 8.66 6.00 13.20 M8
JL2-150 2 150 M8 171 6.73 102 4.02 206 8.11
222 8.74 8.30 18.26 M8
JL2-200 2 200 M8 171 6.73 110 4.33 330 12.99
365 14.37 12.80 28.16 M8
JL2-250 2 250 M8 171 6.73 151 5.94 330 12.99
366 14.41 16.00 35.20 M8
JL2-300 2 300 M8 171 6.73 151 5.94 330 12.99
366 14.41 18.00 39.60 M8
JL2-400 2 400 M8 211 8.31 175 6.89 329 12.95
367 14.45 25.50 56.10 M8
JL2-500 2 500 M8 241 9.49 172 6.77 330 12.99
366 14.41 29.50 64.90 M8
JL2-600 2 600 M8 301 11.85 175 6.89 330 12.99
366 14.41 35.60 78.32 M8
JL2-800 2 800 M8 410 16.14 175 6.89 330 12.99
366 14.41 53.00 116.60 M8
JL2-900 2 900 M8 475 18.70 175 6.89 328 12.91
365 14.37 60.00 132.00 M8
JL2-1000 2 1000 M8 475 18.70 175 6.89 328
12.91 365 14.37 63.00 138.60 M8
JL2-1200 2 1200 M8 475 18.70 175 6.89 328
12.91 365 14.37 68.00 149.60 M8
JL2-1500 2 1500 M8 401 15.79 351 13.82 342
13.46 378 14.88 96.00 211.20 M8
JL2-2000 2 2000 M8 491 19.33 351 13.82 343
13.50 383 15.08 128.00 281.60 M8
JL2-3000 2 3000 M8 712 28.03 353 13.90 341
13.43 382 15.04 192.00 422.40 M8

Characteristic of JL Series (AGM Deep Cycle Battery)

Valve Regulated design, no free liquid electrolyte, Maintenance -free
Designed floating service life: 15 years (25℃)
Operating temperature range: -15-35℃
Thicker plate design, long service life
Self-discharge rate≤ 3% per month

Application of JL Series (AGM Deep Cycle Battery)
Telecom power system
UPS system
DATA centre
Solar power
Wind energy
Etc

Founded in 1993, KIJO battery Group is a professional storage battery factory
and renewable energy battery storage companies, we provide Energy Storage
Battery, Reserve Power Battery, Motive Power Battery, Lithium Battery,
batteries and renewable energy, batteries to store renewable energy, battery
storage for renewables, deep cycle cranking battery, deep cycle caravan
battery, renewable energy batteries and etc. Want to know more? Please contact
us.
