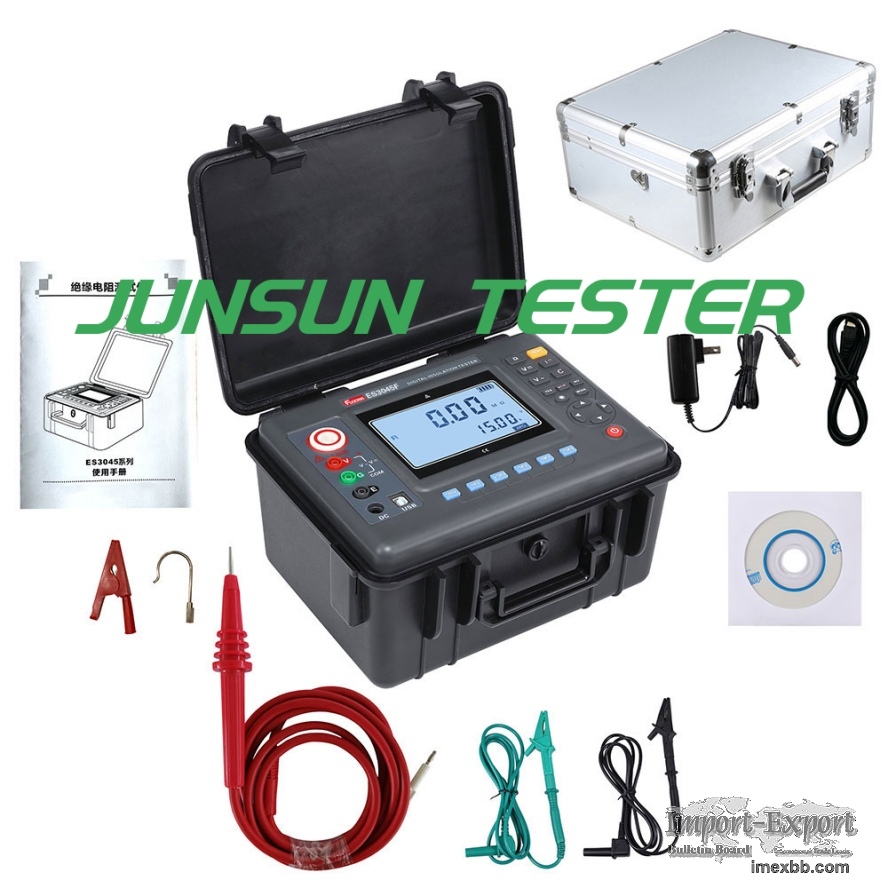

JS3045 Series Digital Insulation Resistance Megohm Meter

JS3045 Series Digital Insulation Resistance Tester, also known as
megohmmeter, high voltage insulation resistance meter, is used for insulation
resistance test. The instrument has large-screen LCD gray and white backlight
display, data storage, data access, alarm, automatic discharge, charging,
automatic shutdown and other functions. At the same time, it also has the
function of measuring the absorption ratio of DC voltage and AC voltage and
polarization index. The whole machine is beautiful and high-grade, with a
wide range, high resolution, convenient operation, convenient carrying,
accurate, reliable, stable performance, large output power, and strong anti-
interference ability.

JS3045 Series Digital Insulation Resistance Tester has a shock-proof, dust-
proof and moisture-proof structure, and is suitable for harsh working
environments. And an essential instrument. It is suitable for measuring the
insulation resistance value of various insulating materials and transformers,
motors, cables and electrical equipment.

JS3045 Series Digital Insulation Resistance Tester consists of medium and
large-scale integrated circuits. This watch has large output power and many
outputs voltage levels (there are 6 voltage levels). The rated insulation
test voltage range is 100V ~ 15kV (the output voltage is determined according
to the model), and it has a step-by-step voltage adjustment function to
output a variety of different voltage levels (such as 15kV models can
generate 12KV and other voltage levels, and the use range is wider),
insulation The resistance measurement range is 0.01MΩ～50TΩ (determine the
measurement range according to the model); the DC voltage measurement range
is 0～1000V; the AC voltage measurement range is 0～750V; the DC current
measurement range is 0.01nA～6mA; the capacitance measurement range is 10nF～
50uF.
