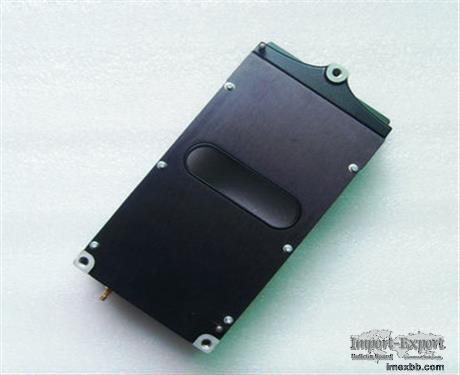

JUKI 2050/2060/FX1R/FX-1 Laser E9611729000 MNLA Sensor 8010518 Sensor

JUKI 2050/2060/FX1R/FX-1 Laser E9611729000 MNLA Sensor 8010518 Sensor

Cleaning Multi-Nozzle LaserAlign Sensor Windows:
MNLA Optical windows are exposed and should be treated and cleaned with the
same caution used when caring for a high-quanlity camera lens. Fingerprints and
excessive amounts of dust or other residue on these windows will degrade the
performance of the sensor.

CyberOptics recommends cleaning the sensor windows once every three months.
Under adverse conditions, it may be neccessary to clean them more often.
However, more frequent cleaning is discouraged due to the chance of damage to
the windows from improper cleaning.

Normal cleaning procesure:
Under normal operation conditions, dust and debris can accumulate on the MNLA
windows. To remove this dust, CyberOptics recommends using one of the following
procedures.
Blow the dust off the sensor windows using an airbrush or a can of pressurized
air.
Brush the dust off the sensor windows using a camel-hair brush or a brush made
of a material designed for cleaning optical surfacts.

Cleaning procedure for persistent problems:
Use the following procedure to remove fingerprints or other oily deposits that
are not removed using normal cleaning procedures.
1, Moisten a lint-free tissue or cotton swab with a small amount of isopropyl
alcohol, Do not use acetone, which can remove the paint from the sensor
casting.
2, Wipe each window once with the moistened tissue or swab in a single
direction.
Warning: Wiping back and forth may re-deposit the debris and may damage the
window.
3, Using a dry tissue or swab, lightly wipe each window in a single direction
to remove any remaining alcohol residue.

Thanks
