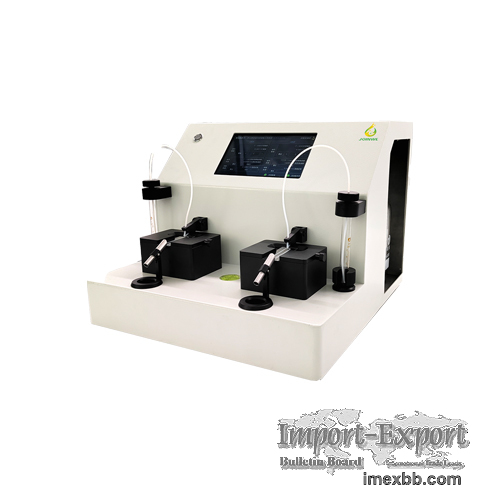

JW-FG8-X6 Dual Slide Analytical Ferrograph

The analytical ferrography system consists of three parts: the analytical
ferrography instrument, the ferrography analysis microscope, and the spectrum
software management system. The analytical ferrography instrument uses a high-
gradient strong magnetic field to separate ferromagnetic and paramagnetic wear
particles from machine lubricating oil, and then deposits them in sequence on a
glass plate to form ferrography plates. Subsequently, a ferrography analysis
microscope is used to observe and analyze the wear particles on the ferrography
plates in terms of morphology, size, composition and quantity. In combination
with the graph software management system, a user graph database can be
established, facilitating the daily management and analysis of the graph.
