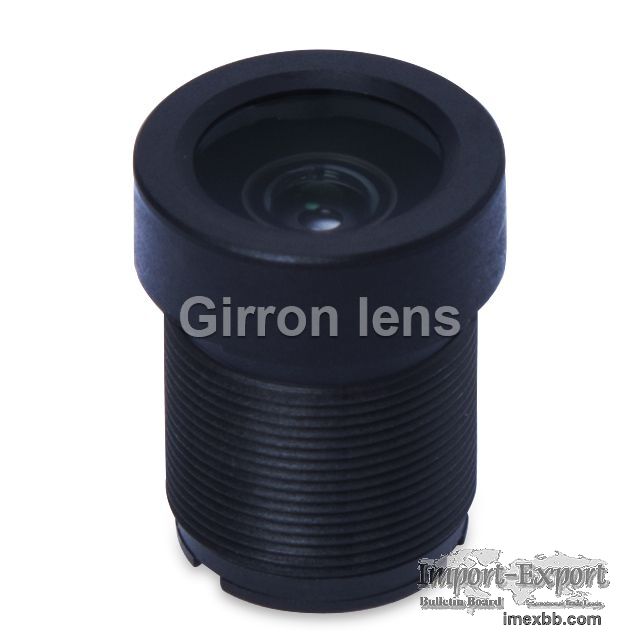

JX6401 CCTV camera lens EFL 4mm 4mp M12 F/No2.5mm Φ6.9mm

Security Lens Description
Item No JX6401
EFL 3.92mm
F/No 2.4±5% mm
FOV 1/2.7" D=107° H=89° V=48°  1/4" D=67° H=57° V=32°
Distortion 1/27" -35%   1/4" -13%
Structure 1G3P
Material Glass+Plastic
Mounting M12XP0.5
TTL 22.5±0.3mm
Resolution 4MP
Max Image Circle Φ6.9mm
BFL 5.1mm
Wavelength 400-700nm,850nm
Working Temp. -30℃-+70℃
If you’re new to security cameras you may think all lenses all the same… but
they’re not. This is why choosing the right one is an important consideration,
as this impacts your security footage.
There are actually a wide variety of lenses which produce different scenes,
known as field of view. Girron CCTV camera lenses are designed to address
specific surveillance needs.

Click to Enlarge
