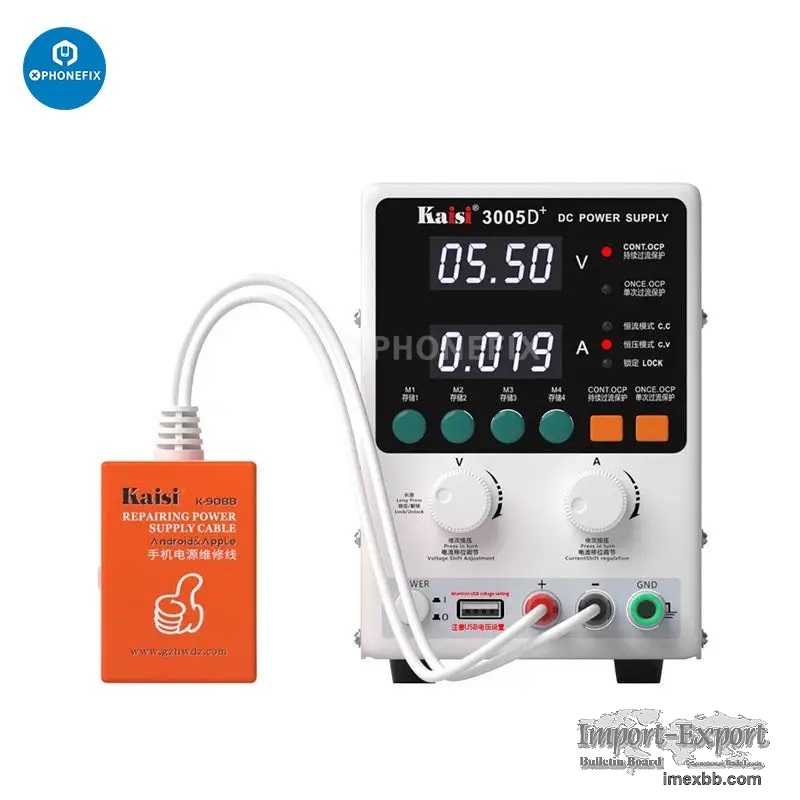

Kaisi 3005D+ Regulator Switching Digital CNC DC Power Supply

Kaisi 3005D+ CNC DC Power Supply 4 Bits Voltage Switching Regulator 30V 5A
Output Digital Variable DC Power Supply. Kaisi 3005D+ Laboratory Transformer
110V 220V Voltage Regulator Mobile Phone Repair Tools.

Features:
30V/5A full digital power control single
10mV/1mA high accuracy and resolution
Low noise and ripple
CV/CC given voltage and constant current mode
Highly reliable OCP, OVP, arbitrarily set protection
Outputs a switch control
Power and memory function
Keypad lock to prevent misuse
An intelligent temperature control fan effectively reduces the noise.
0-30V adjustable DC output high-precision.
10mV and 1mA resolution
Professional power supply design with intuitive operability.
Simple and intuitive operation, fast and accurate selection of voltage and
current can be realized.
To prevent damage to the load can be set to the value of over-voltage
protection and over-current protection to prevent the voltage regulator from
beyond the threshold can
The keyguard lock panel buttons to prevent undesirable results in the key
test engineering
Just press the button to recall and save area a key to bring up the user to
store the data and save user settings

Specification:
Operating Conditions:
Input voltage:220V / 110V
Frequency range: 50- 60Hz
Operating temperature: 32-104 ℉ (0-40 ºC)
Operating humidity: < 80%RH
Storage temperature: 32-158 ℉ (0-70 ºC)
Storage humidity: < 70%RH

Stable Voltage:
Output Voltage Range: 0-30V Continuously adjustable
Setup Resolution: 10mV
Setup Accuracy: <0.05% +20 mV
Ripple: < 1mVRMS
Read back Accuracy: 10 mV
Temp. Coefficient: < 0.1% + 10mV
Read back Temp. Coefficient: < 100 ppm+10mV

Stable Current:
Output Current Range: 0-5A Continuously adjustable
Setup Resolution: 1 mA
Setup Accuracy: <0.1% +3mA
Ripple: < 3mARMS
Read back Accuracy: 1mA
Temp. Coefficient: < 0.1% + 5mA
Read back Temp. Coefficient: < 100 ppm+5mA


Package includes:
1 x Adjustable DC Power Supply
1 x Power line

Minimum Order: 1 pieces
