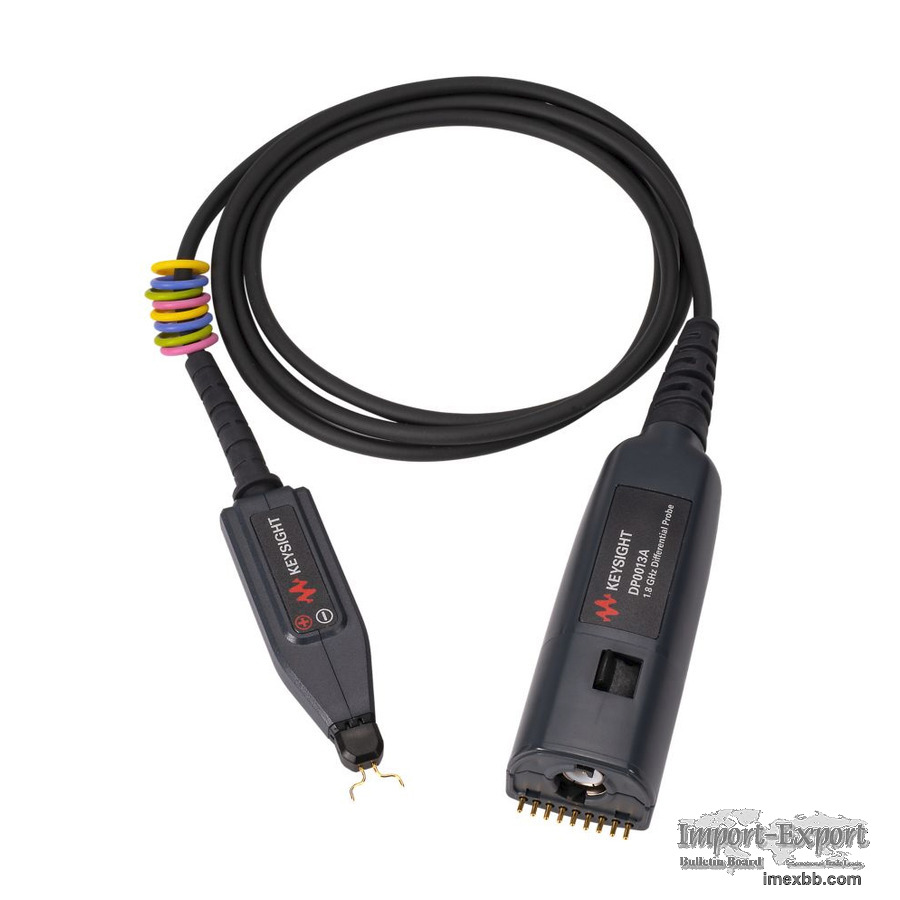

Keysight DP0013A: Precision Differential Active Probe for High-Speed Signal

Features and Specifications: Keysight DP0013A Differential Active Probe,
1.7 GHz, 42 V, 1.7Mohm 1.5 pF, DP001xA Series.

sell by UMIATI Calibration


Product Overview:

The Keysight DP0013A Differential Active Probe is a high-performance probe
designed for accurate and reliable measurements in high-speed differential
applications. With its wide bandwidth of 1.7 GHz, high input impedance of
1.7 Mohm, and low input capacitance of 1.5 pF, the DP0013A provides
exceptional signal fidelity and minimizes loading effects on the circuit
under test.

Features:

Bandwidth: 1.7 GHz
Input Impedance: 1.7 Mohm
Input Capacitance: 1.5 pF
Maximum Input Voltage: 42 V
Differential and Single-Ended Measurements
AutoProbe Interface for Automatic Probe Setup
Compact and Lightweight Design

Specifications:

Bandwidth: 1.7 GHz (-3 dB)
Input Impedance: 1.7 Mohm ±2% 1.5 pF ±5%
Maximum Input Voltage: 42 V (DC + peak AC)
Common Mode Rejection Ratio (CMRR): >60 dB at 100 MHz
Differential Gain Accuracy: ±1%
Differential Phase Accuracy: ±1°
Rise Time: 250 ps
Fall Time: 250 ps
Probe Tip Resistance: 100 kΩ
Probe Tip Capacitance: 1 pF

What’s in the Box:

DP0013A Differential Active Probe
Ground Lead
Probe Tip Accessories
User Manual

Benefits:

Accurate and reliable measurements in high-speed differential applications
Wide bandwidth and high input impedance minimize loading effects
Differential and single-ended measurements provide versatility
AutoProbe Interface simplifies probe setup
Compact and lightweight design for easy handling

Minimum Order: 1 pieces
