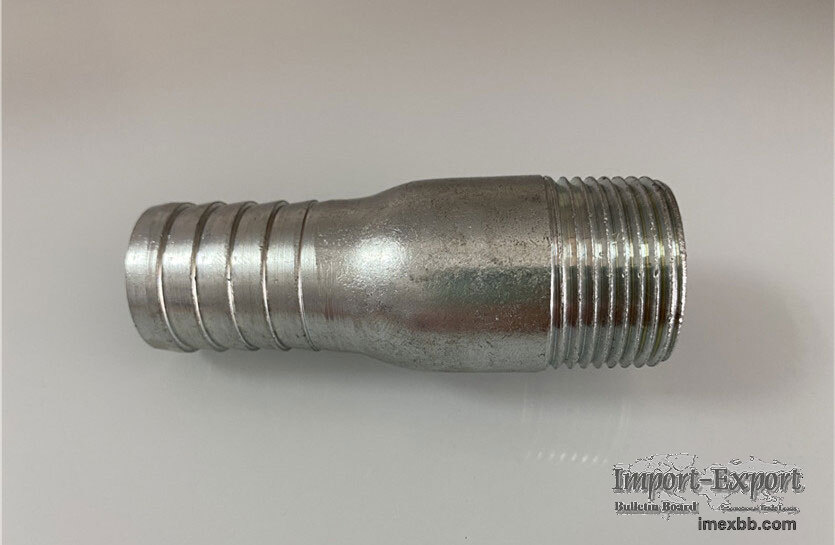

KING NIPPLES

KING NIPPLES, also known as KC Nipples, are a versatile hose coupling for
transitioning from a hose to pipe, equipment, valves, or strainers.

These end connections are mainly used for fluid service.

NPT, BSPT male thread is standard.

King combination nipples are also available in a grooved end or with a beveled
end for welding.

Plated steel prevents rust and weathering.

Install directly on equipment and then slide the hose onto the stem to
eliminate the need for a female swivel in permanent installations.

King nipples are recommended for low-pressure discharge and suction service for
compatible liquids. They are not for compressible products such as air or
nitrogen on sizes ¼" and above.

King Combination Nipples are not recommended for steam.

The working pressure may vary with the construction of the hose, the type of
clamping system used and the application. Consult the factory for
recommendations.

According to R.M.A.'s announcement on suction and discharge hoses, the
connection length of any size hose should be tested at ½ times the working
pressure and kept for 15 minutes without leakage or coupling movement.

For customers with different needs on King nipples / King combination nipple
sizes, SANVO Pipes & Fittings provides you with the following available sizes
of pipe nipples: 1/8 ", 1/4 ", 3/8 ", 1/2 ", 3/4 ", 1 ", 1-1/4", 1-1/2 ", 2 ",
2-1/2 ", 3 ", 4 ", 5", 6 ".

SANVO Pipes & Fittings is a professional king nipples suppliers,we provide
adapter insert,one side threaded nipple,king nipple reducer, king nipple pipe
fitting for sale., If you want to know more, contact us.

Minimum Order: 5 tons
