KM001 POWER-Z Type-C Voltage Current Detector USB Digital Tester

Upgraded POWER-Z tester KT002-USB KM003C Type-C voltage current detector.
POWER-Z PD tester for mobile phone motherboard repair. KT002 POWER-Z USB
version. KM003C POWER-Z Type-C version 0-50V 0-6A PD3.1 Mobile Repair Tool
48V Type-C Charger Test Tool.

Option:

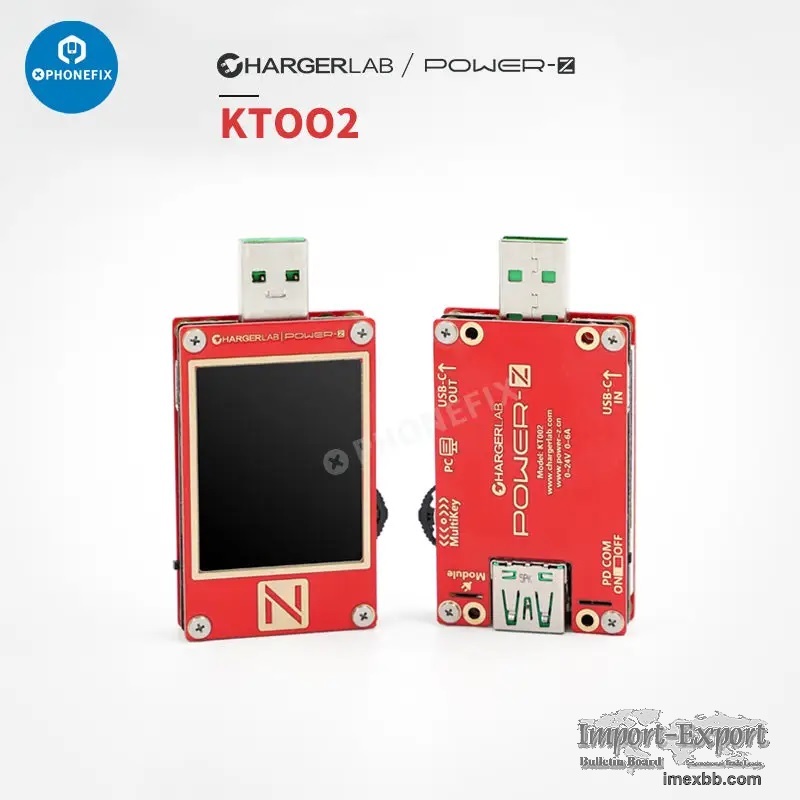

1. POWER-Z tester KT002 USB version.
2. Power-Z TESTER KM003C Type-C version.

POWER-Z This test table integrates a total of six USB ports, to meet the
needs of most of the players test. Another feature of it is to support ripple
testing. Its function is similar to a micro-oscilloscope, you can test less
than 50Hz ripple, the daily use of enough.

It be used to test the PD instrument, the table gives full consideration to
the complexity of the physical interface updating when charging, diversity
and charging of the agreement, will be the most common USB-A interface, Micro
USB port, Type-C interface integrated together, in addition to the USB PD
measurement professional, can also be used for the measurement of QC3.0/2.0
and other fast charge.



Product Function:

Display voltage, current, power, mAh, mWh
Press the menu button can be transferred to the recording interface, you can
set to store a variety of different capacity and energy data
Each stored data can be deleted and marked
Set the recording time interval and maximum capacity
Automatic run of the rule setting, current threshold setting
End time setting
Display the information interface
Test line resistance function
It will be measured wire into the tester, followed by a load, the resistance
will always beating, until the resistance is stable, the degree, is the size
of the line resistance, and there are good evaluation, let you know the wire
is good or bad
You can set the waveform display refresh rate, the higher the refresh rate,
the faster the display
Plug in the charger, the automatic display D + and D-voltage, the following
shows the charger support the charging protocol
Press the menu button, automatically trigger quick charge voltage.

Minimum Order: 1 pieces
