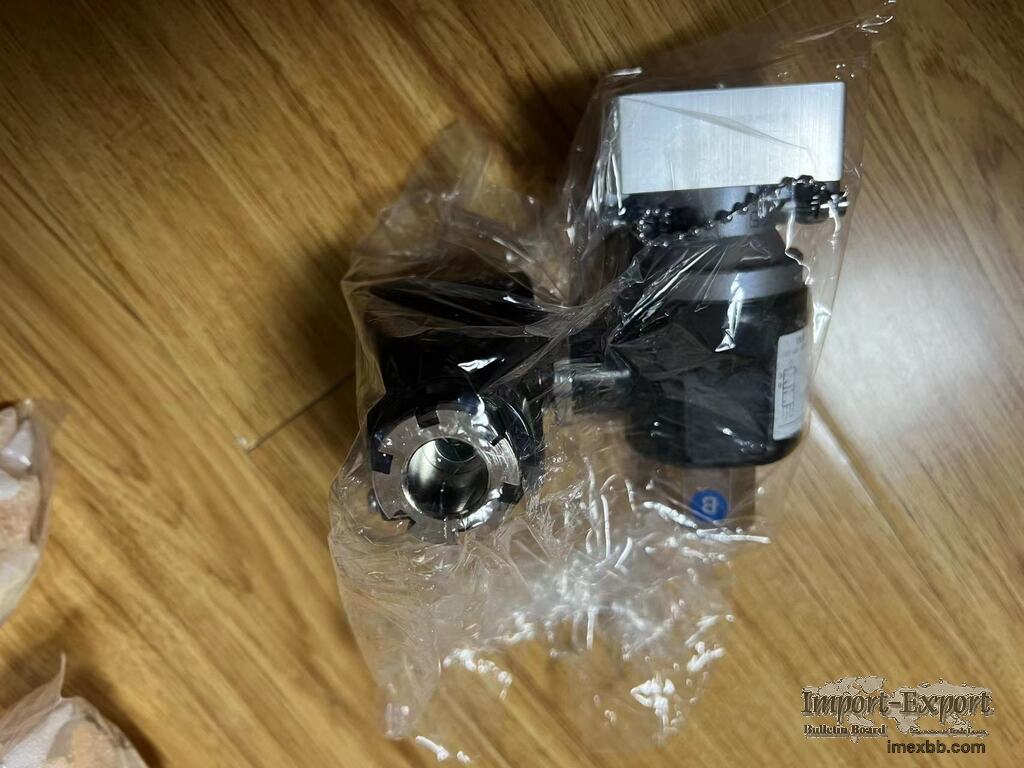

Konan 454 series direct piping type compact explosion-proof 5-port solenoid

Compact type explosion-proof solenoid valve effectively layouting a terminal box to
ensure easy wiring. Connection interface can be selected from direct piping type or
NAMUR standard model.
Model code
Return 454S101C 454S102C 454S202C 454S203C
Hold 454D101C 454D102C 454D202C 454D203C
Port size Rc1/8 Rc1/4 Rc3/8
Effective area of valve 10mm2 22mm2
Working pressure 0.15～0.7MPa
Ambient temp. d2G4 : -5～60℃ Exd II BT4 : -5～40℃
Solenoidf
Rated voltage AC100V,110V,200V,220V(50/60Hz)   DC24V
Temperature rise ≦60℃
Insulation class JIS C4003 Class H
Power consumption AC: 5.5 VA (60 Hz) / 7.5 VA (50 Hz), DC: 4 W
Response time ≦0.05 sec
Explosion-proof standard Explosion-proof enclosure construction d2G4 and Exd II BT4
