Konica KM1024 MHB 14PL Print head

Konica km 1024 MHB 14pl LHB 42pl uv print head for uv printer
Original konica minolta 1024 MHB printhead km1024 MHB/14pl LHB/42pl uv printhead for flora uv printer

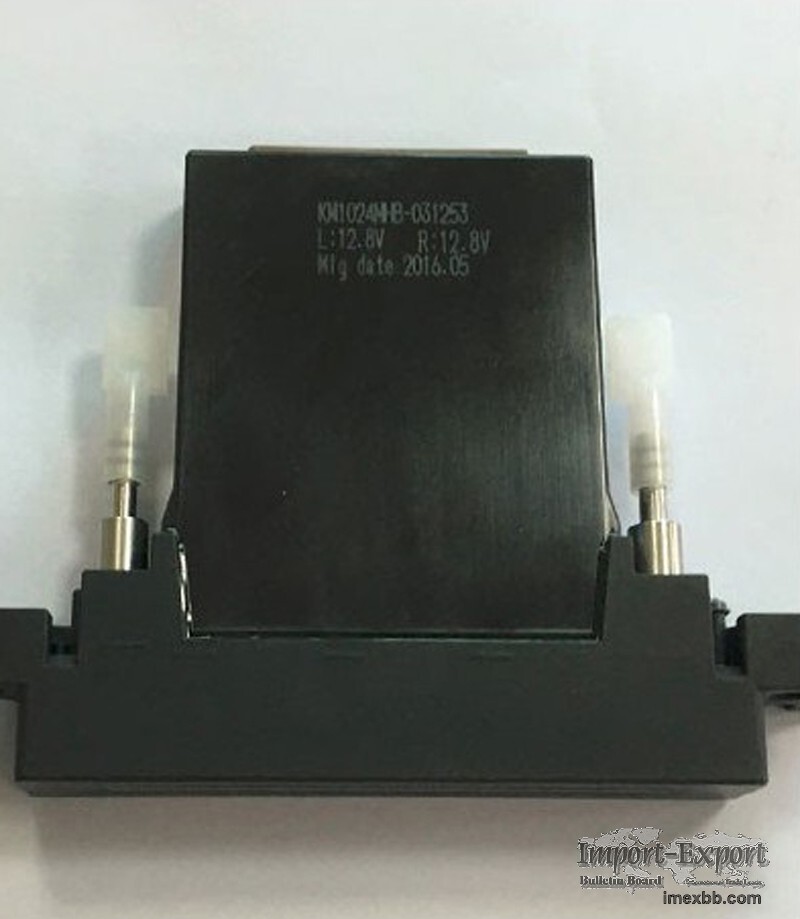

Original Konica 1024 KM1024 MHB 14PL UV print head

The Konica Minolta KM1024 MH print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. Offering twice the print width and double the level of greyscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 MH print head has 1024 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi. The print head has an integrated heater, which makes it ideal for UV inks, but suitable for solvent inks as well. This print head is also known as the Konica Minolta KM1024 MHB. This is Konica original print head. It carries a product warranty.

Specifications

Technology: On-Demand Piezo Electric (Shared Wall 3 Cycle)
Native Resolution: 360 dpi
Cal. Droplet Size: 14 pico litre
Max. Drops in Greyscale: 8 drops
Tot. Amount of Nozzles: 1024 (512 nozzles per line)
Nozzle Spacing: 70.5 microns
Print Width: 72 mm
Firing Frequency: 12.8 kHz
Ink Compatibility: UV and Solvent Inks
Heater: integrated


Compatibility Printer :

Dilli Neo Titan UV-1604DS
Dilli Neo Titan UV-1604DW
Dilli Neo UV-LED Flatbed

Docan 2510 UV

Effetec Effejet EF2030UV

Flora F1 320UV
Flora PP 2512UV

IIJ ColourPrint-142-HQ
IIJ ColourPrint-282
IIJ ColourPrint-352
IIJ ColourPrint-72
IIJ MonoPrint 352
IIJ MonoPrint 72

Inktec Jetrix 2030FK
Inktec Jetrix 2030FRK

Orbotech Inkjet Legend

Scorpion 5100 INNO-UV
Scorpion 3300 INNO-UV (2016)
Scorpion 3300 INNO-UV SE

SwissQprint Impala
SwissQprint Nyala

Tecom TIJ-2048C-400

Minimum Order: 1 pieces
