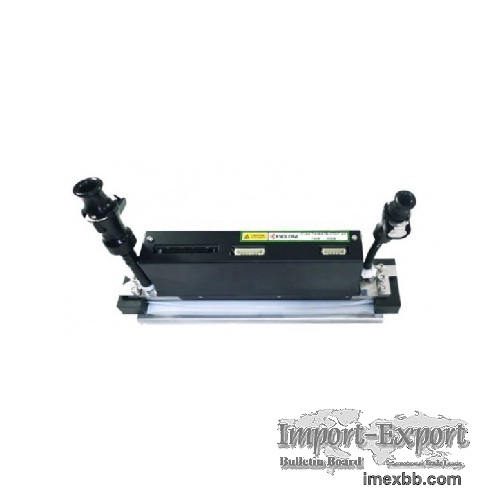

Kyocera Inkjet Printhead KJ4A-0300

PRICE $ 3060

This original Kyocera KJ4A-0300 printhead is designed for high speed
single-pass applications with printers using aqueous ink, multi-pass using
UV inks. It is a 300dpi two colours printhead with a maximum drive
frequency of 30kHz. It delivers high quality with a small drop volume of
4pl at 158 m/min by making use of 2,656 nozzles arranged across 112.35 mm
wide print swathe.

The following items are expressly excluded from warranty coverage:
defects in printers related, in any way, to the use of any non-original or
DIGINK inks or ink cartridges and nozzle clogging
defects related to misuse, abuse, accident, neglect, lack of use, or
improper storage when not in use for extended periods
defects related to failure to perform periodic maintenance as specified in
the user documentation; operation for unintended purposes
defects related to improper loading of media
all other defects, failures or damage not considered manufacturing defects
defects related to third-party applications, software, parts, components,
or peripheral devices, including any bulk ink system.
defects that are merely cosmetic in nature.
Specifications
Ink Type: UV ink
Dimensions: 200 × 36 × 61.4mm
Dry Weight: 540g
Total Nozzles: 2.656 (2x 1328)
Standard Resolution: 300 x 300dpi
Print Width: 112.35mm
Max. Drive Frequency: 30kHz
Drop Volume: 4, 6, 10 and 14pl
Max. Sprint Speed: 158m/min
Typical ink viscosity: 7.0-7.5 mPa
This printhead carries a manufacturer warranty.
Country of origin : Japan

Minimum Order: 1 pieces
