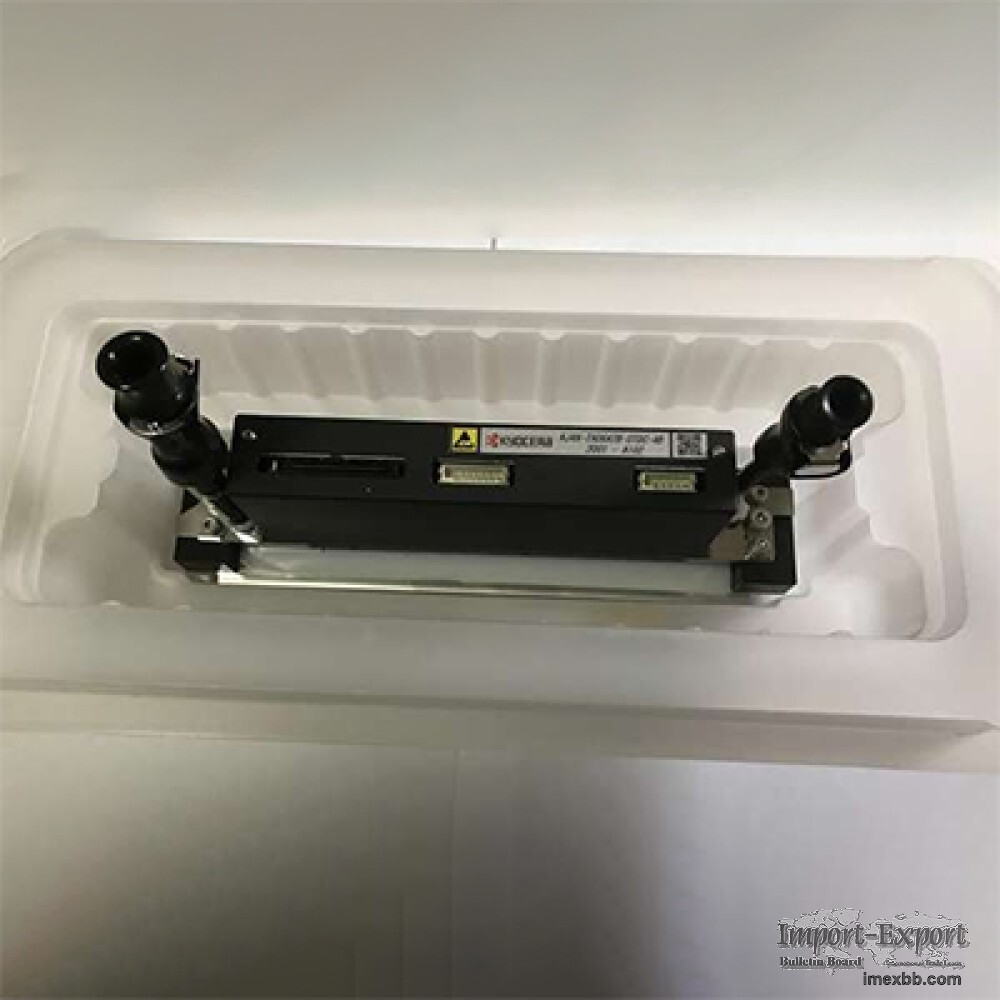

Kyocera KJ4A-TA Inkjet Printhead (mutiaraanggraeni.com)

This new generation Kyocera KJ4A-TA is designed for high-speed single-pass
applications with printers using UV ink. It is a 600dpi two colors
printhead with a maximum drive frequency of 20kHz. It delivers high quality
with a small drop volume of 6pl at 158 m/min by making use of 2,656
nozzles arranged across 108.25 mm wide print swathe.

Specifications
Ink Type: UV ink
Dimensions: 200 × 25 × 59.3 mm
Dry Weight: 540g
Total Nozzles: 2.656 (2x 1328)
Standard Resolution: 600 x 600 dpi
Print Width: 108.25 mm
Max. Drive Frequency: 20kHz
Drop Volume: 6,7,11 & 14PL
Max. Sprint Speed: 50 m/min
Typical ink viscosity: 6.0-7.0 mPa



Price : USD 4,235.00

Minimum Order: 1 pieces
