Kyocera UV KJ4A-RH Printhead

Price : US $$3,999.00
For more information about our product and our attractive discount please visit our official website : http://www.m-husnistore.com or please feel free to contact us in our official email : sales@m-husnistore.com
Payment Terms : T/T and Paypal
Packaging Details : We use box and carton ,Uses the high grade packing material. The high strength packing material reduced in the transportation process broken package phenomenon enormously, when leaving the plant uses the carrier to add the expansion membrane packing, guaranteed that the user obtains the optimum condition product.carbon less paper. And as per buyer requirement.
Delivery Time : depend the country

Kyocera UV KJ4A-RH Printhead
This new generation Kyocera KJ4A-RH is designed for high speed single-pass and multi-pass applications with printers using UV ink. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 70 m/min by making use of 2,656 nozzles arranged across 108 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

The Kyocera KJ4A-RH is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.

Specifications

Ink Type: UV ink
Dimensions: 200 × 36 × 61.4mm
Dry Weight: 540g
Total Nozzles: 2.656 (2x 1328)
Standard Resolution: 300 x 300dpi
Print Width: 112.35mm
Max. Drive Frequency: 30kHz
Drop Volume: 4, 6, 10 and 14pl
Max. Sprint Speed: 158m/min
Typical ink viscosity: 7.0-7.5 mPa

Minimum Order: 1 pieces

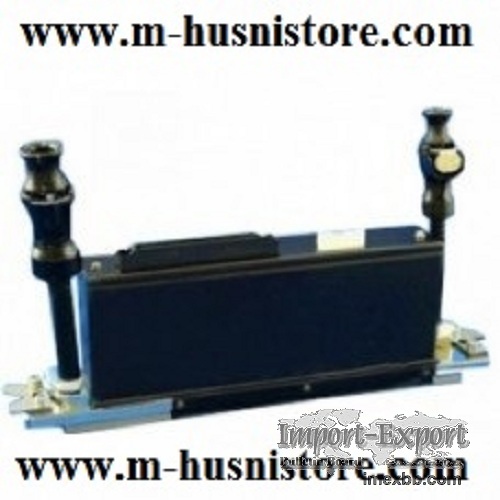

Kyocera UV KJ4A-RH Printhead
