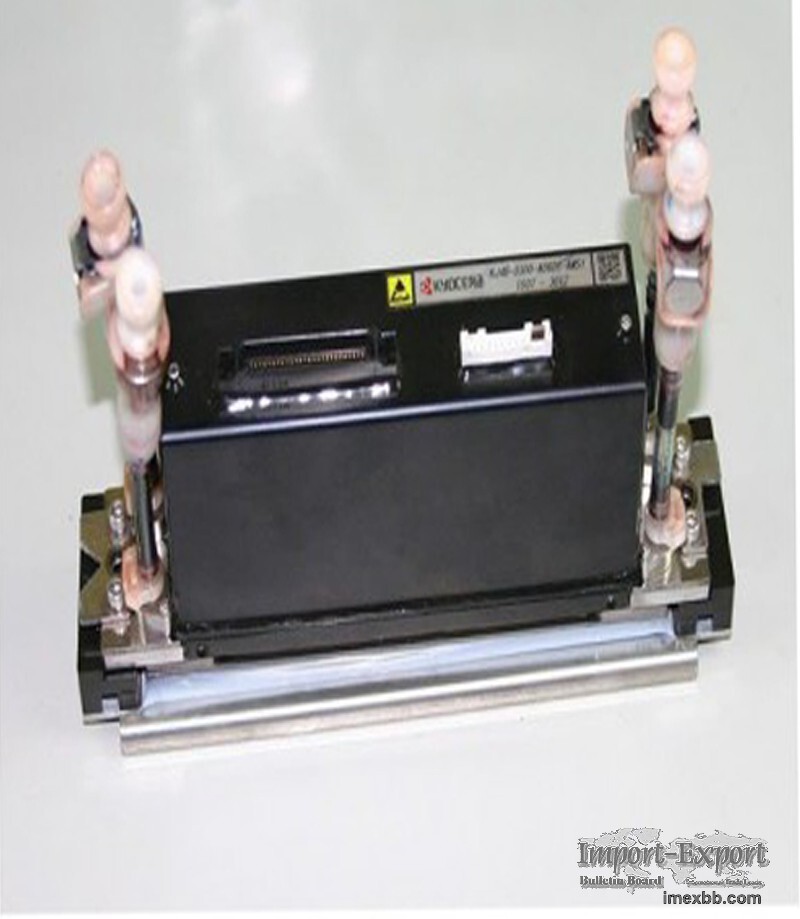

Kyocera Water Printhead KJ4B-QA CNTOP Homertech textile printer

Kyocera printhead water based KJ4B-QA for textile printer
Kyocera KJ4B-QA Print Head Water Based Printhead for CNTOP/Homer
Original for Kyocera printhead water KJ4B-QA for CNTOP Homertech textile printer
Kyocera Industrial Printhead KJ4B-QA Water Based Print Head

The Kyocera KJ4B-QA is equipped with internal filters that eliminate foreign objects in ink and an internal heater that adjusts the impact of external temperatures. It’s unique ink channel design provides a stable ink supply.

This Kyocera KJ4B-QA is designed is designed for high speed printing of water-based inks. It is a 600dpi one colour printhead with a maximum drive frequency of 30kHz. It delivers high quality with a small drop volume of 5pl at 75 m/min by making use of 2,656 nozzles arranged across 108.25 mm wide print swathe with 0.042mm pitch, resulting in 30.000 drops per second.

Specifications :

Ink Type: Aqueous Ink
Dimensions: 200 × 25 × 59.3mm
Dry Weight: 420g
Total Nozzles: 2.656
Nozzle Pitch: 0.042mm
Standard Resolution: 600 x 600 dpi
Print Width: 108.25mm
Max. Drive Frequency: 30kHz
Drop Volume: 5, 7, 12 and 18pl
Max. Sprint Speed: 75m/min
Optimum Ink viscosity: 5.0 - 6.0 mPa*s

Compatibility Printer :

EFI Reggiani ReNOIR TOP
EFI Reggiani Compact 180

MCS Eagle

MS Italy JP6

Xerox Rialto 900

Minimum Order: 1 pieces
