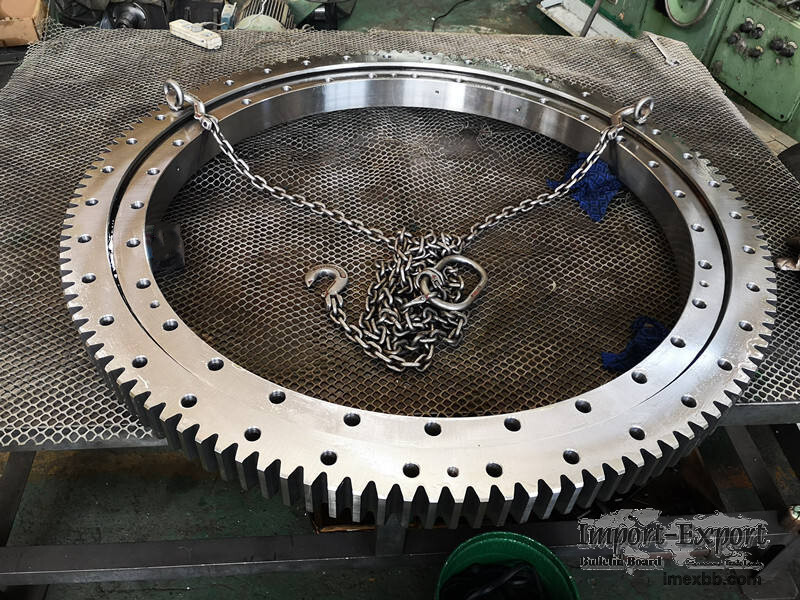

L shape RKS.21 0411 slewing ring with size 505*304*56mm

L shape RKS.21 0411 slewing ring with size 505*304*56mm
De(OD):505mm
Di(ID):304mm
Bi , :368mm
Fe:455mm
Ne:10
Fi:332mm
Ni:12
m(module):5
z:99
D:495mm
Total height:56mm
weight:32kgs
Material:42CrMo/50M , n
Rolling elements:steel ball
Operating tempereature:-40°C +150°C
Load direction:Radial bearing
RACEWAY hardness:55~62HRC
Inner and outer ring modulation hardness:229-268HB
High operational efficiency:compact design
packaging:wooden box
shipment: sea or air


L-shape bearings only to be used in compression.
Steel : high quality steel, XC 45 improved
Lubrication : L’Shape slewing bearings are pre-lubricated with a lithium soap,
EP additives and a consistency of 2
Bolting class : 10.9 recommended
Grease nipples : four equally grease nipples (M8X1.00) (G)
High quality raceways hardening L’Shape slewing bearings with special holes or
without holes for attachment bolts
More types we manufacture:
RKS.21 0411
RKS.21 0541
RKS.21 0641
RKS.21 0741
RKS.21 0841
RKS.21 0941
RKS.21 1091
RKS.22 0411
RKS.22 0541
RKS.22 0641
RKS.22 0741
RKS.22 0841
RKS.22 0941
RKS.22 1091
RKS.23 0411
RKS.23 0541
RKS.23 0641
RKS.23 0741
RKS.23 0841
RKS.23 0941
RKS.23 1091
if you are interested in China factory RKS.21 0411 slewing ring with size
505*304*56mm, please contact us freely.

Minimum Order: 1 pieces
