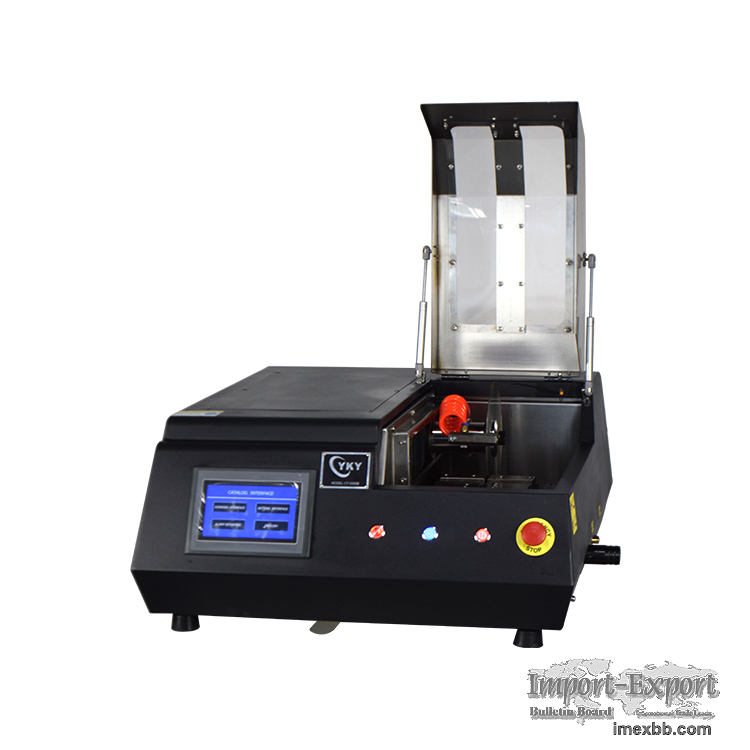

laboratory programmable metallographic sample cutting machine

Metallographic sample cutting machine CY-5000B is suitable for precise non-
deformation cutting of metals, electronic components, ceramic materials, crystals,
cemented carbide, rock samples, mineral samples, concrete, organic materials,
biological materials (tooth, bone) and other materials . The equipment has high
positioning accuracy; wide speed range; strong cutting ability; strong circulating
cooling system; preset feed speed; touch screen control display, easy to operate
and control; automatic cutting can reduce operator fatigue and ensure the
consistency of sample making; large and bright cutting room with safety switch. It
is an ideal equipment for industrial and mining enterprises and scientific research
institutes to prepare high-quality samples.

1. Spindle speed: the user can arbitrarily set between 500-5000r to adapt to
material cutting, and the setting is effective when stepless speed regulation is
running.
2. Cutting stroke: range 0-200mm, set an appropriate stroke to stop cutting when
cutting is completed, continuous cutting of the same sample does not need to
reposition.
3. Cutting speed: range 0.01-3mm/s, select the cutting speed suitable for the
material to meet the material cutting requirements, and the setting is invalid
during operation.
4. Retreat speed: range 0-15mm/s, which refers to the speed of retreating to the
starting point of cutting when the cutting runs to the set distance. The larger the
setting distance, the faster when returning.
5. Jog speed: range 0-15mm/s, which refers to the manual forward and backward
speed. If you are not familiar with the operation of the equipment, you should set
smaller jog speed to avoid the cutting piece from hitting the workpiece.
6. Cutting mode selection: direct cutting and impact cutting are two modes for
users to choose, which can meet the cutting of materials in a wider range
7. Direct cutting: It is the common and most economical cutting mode, suitable for
cutting most materials. ,
8. Impact cutting: It is suitable for a certain specific material and material with
high hardness that can not find a suitable cutting blade, and the worn material is
easy to block the cutting blade, or the abrasive of the cutting blade is
insufficient, impact cutting may result in a higher cutting blade Wear, but will
reduce the risk of overheating the workpiece.
9. Cutting distance: range 0.1-2mm, only effective for impact cutting mode, the
smaller the set distance, the faster the impact cutting speed, and the cutting
speed of the workpiece is related to the set cutting speed.

Main technical parameters:
Cutting disc Standard φ200xφ32x0.9
Spindle speed 500-5000r/min
Feed rate 0.01-3mm/s
Manual feed speed 0-15mm/s
Retreat speed 0-15mm/s
Impact cutting distance 0.1-2mm
Cutting stroke (Y axis) 200mm
Max. cutting diameter φ60mm
Max. clamping length of worktable 150mm
Max. clamping width of worktable 200mm
Servo motor Power: 1.1kw
Use method data Can store 12 types
Power supply: AC220V 50HZ
Dimensions 750×860×430mm
Weight 126KG
