Product Description

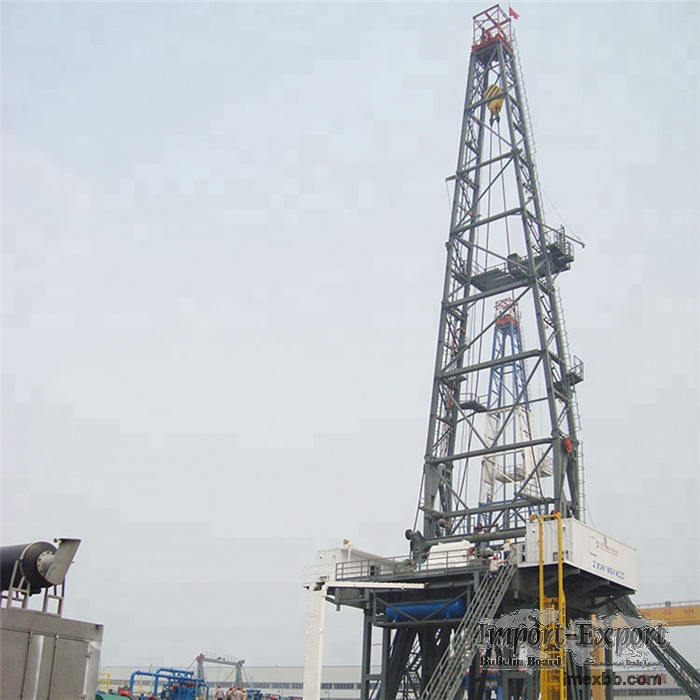

HFY30/1700J rig is mechanically driven rig, backstage drive in the form of two
12V190 diesel-powered rig, driven by a belt and car drawworks, mud pumps,
energy generator or compressor. Winch with the turntable, the background and
the car drive unit with integrated design, installation and transportation is
very convenient. HFY30/1700J rig derrick hoisting winch power. Derrick at the
lower levels, without winch powered by independent hydraulic lifting system to
complete the process of release from the derrick. Has a small footprint, low
mast installation, safe and reliable.
 Parameter Value Parameter  Value
Nominal drilling depth 5in DP 3000m  4 1/2inDP:3500m  Max. hook load
1700Kn
 Line strung of hoisting load system  5X6 Wrie line dia. Ф29mm
 Max pull of fastline 100Kn  Max input power of drawworks  194kw
 Drawworks speeds 3F+1R  Primary brake Band brake
Aux. brake  Eddy brake  Drum size(D×L) 400x600mm
 Hook hoisting speed 0-0.72m/s  Opening of rotary table 445mm
 Rotary table speeds 2F+1R  Rated input power of rotary table 200Kw
 Max. static load of rotary table 2720Kn Max.torque of rotary talbe
14000N.m
 Rotary talbe speed 0-161 r/min Mast type  k type
 Mast effective height 41m  Height of monkey board  17.5m
 Monkey  board capacity(5""DP)  3000m  Substructure type Piled
box
 Drill floor height 2.4m  Drill floor area(L×W) 11x6.4m
 Clear height under rotary beam 3.2 m
