LCD splicing processor mixed multi screen switching control 16in 32out

Product introduction

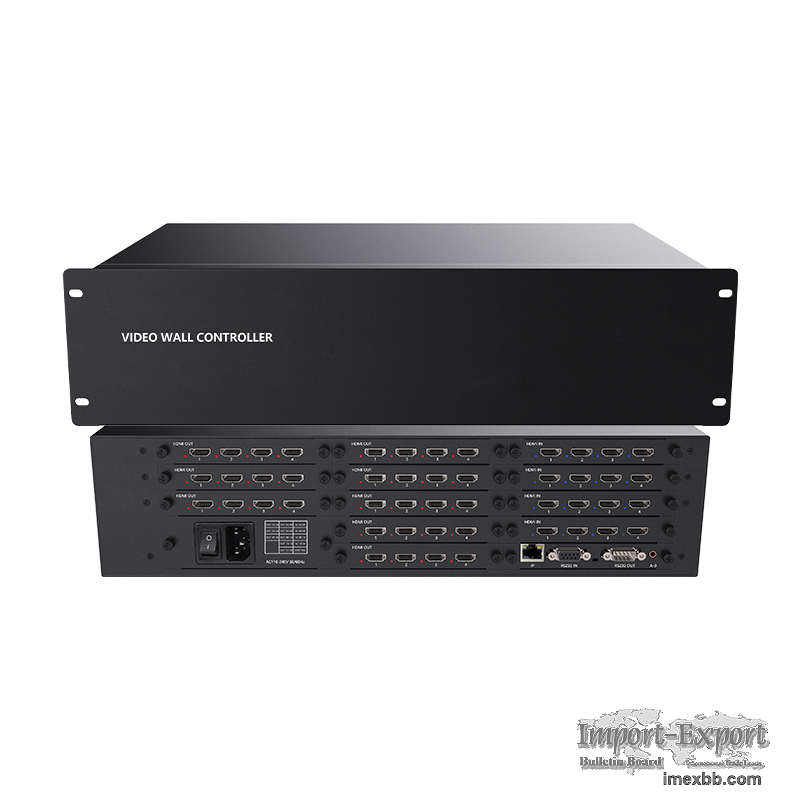

The 2200 series multi screen splicing processor is a high-performance video
image processing workstation with a pure hardware architecture and no operating
system. It adopts the processing mechanism of high-capacity high-speed FPGA
array and CrossPoint digital multi bus data routing exchange to ensure the full
time display of all signal images. It also has high stability and fast startup
speed, and supports 365x24 hours of uninterrupted and stable operation.

The 2200 series multi screen splicing processor is designed with a 19 inch
standard chassis, and the card is designed with a plug-in structure, which can
be flexibly configured according to the needs. The whole machine can realize
splicing combination display within 32 display screens at most, which can meet
the needs of most splicing display projects. It can be widely used in security
monitoring, exhibition, military command, video conference, commercial display,
government announcement and other industries.

Functional characteristics

System architecture, plug-in structure design

 Adopt pure hardware FPGA architecture, no operating system, and high
stability;

 Card type design, input/output board, control board and other main modules
adopt card type design, which is convenient for expansion and maintenance;

 Support matrix switching, integrate matrix function inside the processor,
and open multiple windows for simultaneous display of a single signal source.

 User defined scenarios, 2000 user defined scenarios, support quick scene
switching and one click call.

 Support multiple sets of screen wall functions

 Support third-party serial port devices such as customized protocol control
ring output control screen

Input and output characteristics

 Support audio function, embedded audio input and output, and independent
audio output

 Support automatic detection of input signals, real-time detection of whether
each input port has signal access, and status indication of input board
indicator and software

 Support arbitrary windowing, roaming and superposition of signal images

 The maximum support is 8 layers for a single screen, and 8 windows can be
shared for a single card

 Support output port mapping to achieve blind plug.

 Support seamless switching, and integrate high-definition signal processing
mechanism inside the equipment to ensure that there is no delay, no blue
screen, no black screen and other intermediate transition states during signal
switching.

 Support true 60Hz image input and output processing. RGB444 lossless
processing is used internally to ensure 100% image restoration without color
deviation and distortion.

Support WEB control

 Standard WEB cross platform control

Customized logo, software name, support automatic round robin function of
equipment, and real-time synchronous operation function of multiple terminals

 Support simultaneous operation of multiple users and different terminals,
and synchronize data in real time

Support cross platform control of various operating systems such as Qilin,
Hongmeng, Windows, iOS, Android, Linux, etc

 Support user-defined protocol control, ring out control screen and other
third-party serial port devices

 Upgrade and backup functions, support the import and export of equipment
data, and realize the data backup function

 Support the automatic and timed round robin of scenes, and you can choose
whether each scene participates in the automatic round robin, which is
convenient for monitoring, exhibition and display applications

 Support channel automatic timing round robin. Multiple inputs can be
selected for automatic timing switching at one input, without affecting the
splicing and images of other output interfaces.
