Leakage Protection Socket - ASP Series

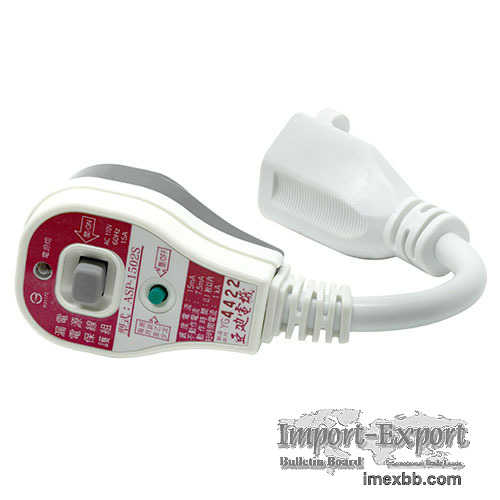

Leakage Protection Power Cord set (ASP Series)

Introducing the AEP-S and AEP-W series Leakage Protection Power Cord Sets.
These power cord sets are designed to prioritize electrical safety,
offering reliable protection against leakage, overload, and short circuits.
The AEP-S series is available in 2P and 2P+E configurations, while the AEP-
W series provides options for 2P and 2P+E connections. With a rated current
of 15A and compatibility with a voltage range of 100-120V, these power cord
sets are suitable for various electrical applications.

Equipped with a sensitive trip mechanism, the AEP-S and AEP-W series ensure
quick response times within 0.1 second to promptly address electrical
faults. The sensitivity current can be adjusted to 15mA or 30mA, providing
flexibility in meeting specific requirements. Additionally, the non-
operation current is set at 1/2 I△n to prevent unnecessary tripping.

Both series feature load terminals, facilitating easy and secure
connections. The AEP-S series is designed with 1Φ2W and 1Φ3W wiring
options, while the AEP-W series offers 1Φ2W and 1Φ3W configurations. These
power cord sets have undergone stringent testing and meet quality
standards, evident in their compliance with the standard inspection bureau
type test and certification by JET2664-42011-1001.
