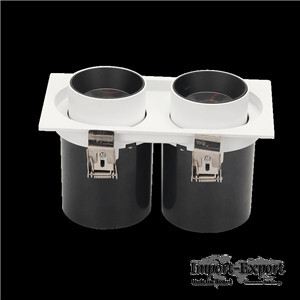

LED Grille Downlight RC Series Two Head

LED Grille Downlight RC Series Two Head custom color LED Grille Downlight
Customized LED Grille Downlight

Model: JST-RC
Wattage: 7W-70W
LED Chip: Citizen/Cree/Epistar
Driver Brand: OSRAM/Philips/Lifud
RA: ＞90
Finish Color: White/Black/Customized
Beam Angle: 15°/24°/36°/60°
Size: 160mm/175mm/330mm
Cutout: 150mm/160mm/320*160mm

Description
New grille spot light die-casting high-rank aluminum integrated heat sink.
international top COB CITIZEN chip, high quality driver, combined with JST
exclusive optical system of lens and , Standard driver originally researched
and developed by JST, stable specifications, glare-free, good heat sink,
brilliant quality, more than 50,000 hours life span.

Jarstar-LED Grille Downlight RC Series Two Head Advantages
1. Patent design with multi-funcations, Hiding light body and Rotable 360°
2. Optic lens stay in deep of the housing to perfermance unti-glare UGR<19
3. High Lighting perfermance to save 60%-80% energy
4. Improved prdocution visibility through High color rendering CRI>90
5. Best same color perfermance at same CCT because the COB SDCM<3
6. Long life time CITIZEN COB to meet 5 years warranty
7. Different installation ways for option: Recessed and Surfacemounted
8. Different Control system: Triac dimming, 1-10V dimming, Dali dimming, App
dimming

Specification
Model Power CRI CCT PF Current Input Voltage Beam Angle
Dimension Cutout
JST-RC 7W*2 >80/90 2700K-5000K >0.90 0.16A*2/3 AC220-240V
15°/24°/36°/60° L131*W71*H110mm 121*65mm
JST-RC 12W*2 >80/90 2700K-5000K >0.90 0.30A*2/3 AC220-240V
15°/24°/36°/60° L185*W100*H120mm 175*90mm
JST-RC 15W*2 >80/90 2700K-5000K >0.90 0.35A*2/3 AC220-240V
15°/24°/36°/60° L185*W100*H120mm 175*90mm
JST-RC 20W*2 >80/90 2700K-5000K >0.90 0.50A*2/3 AC220-240V
15°/24°/36°/60° L240*W130*H135mm 230*120mm
JST-RC 25W*2 >80/90 2700K-5000K >0.90 0.60A*2/3 AC220-240V
15°/24°/36°/60° L240*W130*H135mm 230*120mm
JST-RC 30W*2 >80/90 2700K-5000K >0.90 0.60A*2/3 AC220-240V
15°/24°/36°/60° L295*W160*H155mm 280*140mm
JST-RC 35W*2 >80/90 2700K-5000K >0.90 0.60A*2/3 AC220-240V
15°/24°/36°/60° L295*W160*H155mm 280*140mm

Application
Fashion stores, Stations, Hotels, Offices, Shopping malls, Clubs, Supermarkets
etc.

Jarstar is an innovative ODM and cheap led downlight, LED grille downlight and
hotels LED track light manufacturer. We are the trustworthy company with good
reputation.
For more LED Light, please click here.

https://www.jarstar-tech.com/

Minimum Order: 100 pieces
