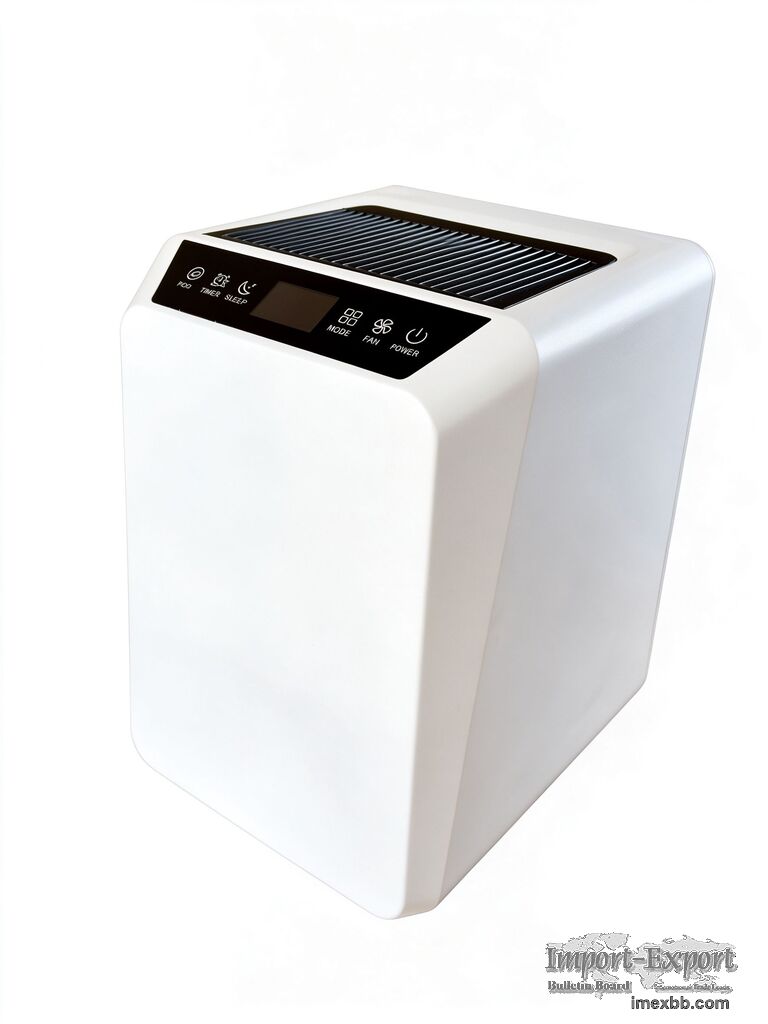

LFT-263AW Plastic Cabinet smart air purifier with 9-stage filtration tech f

Product Overview

New Generation Multi-Functional AIR PURIFIER TIO2 PCO Technology MULTIPLE
FILTRATION Optional OZONE MODULE Professional ODOR REMOVAL & DEODOR Solution

The LFT-263AW and LFT-263BW are our newly upgraded professional AIR PURIFIER and AIR
CLEANER, designed for commercial and household air purification. Adopting advanced
TIO2 PCO photocatalytic oxidation technology and full MULTIPLE FILTRATION system,
this series supports standard daily purification and deep sterilization
decontamination with an optional OZONE MODULE. It delivers excellent ODOR REMOVAL
and DEODOR performance, solving various indoor air pollution problems efficiently
for global B2B clients. Indoor air contaminants including PM2.5, pollen, dust,
formaldehyde, VOC, bacteria, viruses, body odor and pet odor severely affect living
and working environments. Different from single-functional traditional air cleaners,
our six-layer composite purification system achieves full-dimensional air treatment.
Equipped with intelligent LCD digital control and real-time AQI monitoring, this AIR
PURIFIER provides stable, visible and long-lasting air quality improvement.

1. Product Overview & Structural Advantages
This compact AIR CLEANER features a portable body size of L285×W245×H310mm (S/M/L)
and a net weight of only 2.5kg, flexible for placement in homes, offices, basements,
warehouses and pet shops. With an air-cooled heat dissipation system, it operates
stably under complex conditions, with a working temperature range of -10ºC to +55ºC
and a storage temperature range of -20ºC to +60ºC. It adapts to diverse global
indoor environmental scenarios.
Powered by safe DC 24V/3A low voltage, the machine runs at low power consumption
(53W for LFT-263AW, 50W for LFT-263BW). It delivers a maximum air volume of 230CFM
for fast indoor air circulation and rapid purification. It works stably under
10%-90%RH humidity, maintaining reliable ODOR REMOVAL and DEODOR effects even in
high-humidity and mold-prone environments.
Equipped with an LCD digital display and a high-sensitivity AQI sensor, the device
supports real-time indoor air quality data display and intelligent digital control.
5 adjustable fan speeds allow flexible speed switching based on pollution levels,
realizing precise and energy-saving air cleaning. Featuring low 45dB noise
operation, it ensures quiet purification without disturbing daily work and rest.

2. Six-Layer MULTIPLE FILTRATION Purification System The core advantage of this AIR
PURIFIER is the upgraded six-layer MULTIPLE FILTRATION system, integrating physical
filtration, UV sterilization, negative ion purification and TIO2 PCO decomposition.
It completely eliminates dust, pollen, PM2.5, formaldehyde, VOC, bacteria, viruses,
pet odor, body odor and moldy odor, achieving all-round purification and durable
DEODOR & ODOR REMOVAL effects. Pre-coarse Filtration Intercepts large particles such
as hair, lint and coarse dust, protecting internal precision components and
extending the service life of the whole purification system. 2. HEPA High-precision
Filtration The standard 143×107×25mm HEPA filter efficiently traps PM2.5, fine
dust, pollen and allergens, serving as the core physical filtration barrier of this
AIR CLEANER.

3. Negative Ion Purification Built-in negative ion generator outputs ≥5×106/cm³
(optional 2.5×106/cm³) high-density negative ions to settle fine suspended
particles, refresh indoor air and improve air freshness.

4. 254nm UV Germicidal Sterilization Professional 254nm UV lamps destroy bacterial
and viral DNA/RNA to inhibit microbial reproduction. LFT-263AW adopts 2 UV lamps
(φ15×170mm) for stronger household sterilization; LFT-263BW is equipped with 1 UV
lamp to match commercial deodorization demands.

5. TIO2 Photocatalyst PCO Decomposition As the core upgrade technology, TIO2
photocatalyst boards trigger efficient PCO oxidation under UV light, completely
decomposing formaldehyde and VOC into harmless water and carbon dioxide without
secondary pollution. LFT-263AW is fitted with two 165×204×10mm large-area
photocatalyst boards; LFT-263BW adopts two 165×85×10mm photocatalyst boards for
targeted commercial purification.

6. Optional OZONE MODULE for Deep Deodorization The optional OZONE MODULE is the key
differentiated feature of the series. LFT-263BW comes with a built-in 41×10mm ozone
plate with 180mg/h stable ozone output, penetrating space dead corners to oxidize
stubborn odor molecules, mold spores and residual bacteria, realizing professional
deep ODOR REMOVAL and thorough DEODOR. LFT-263BW is ozone-free, safe for long-term
household use.

7.With aroma box
Application Scenarios
Household: Bedroom, living-room, nursery, pet room, apartment, basement
Commercial: Small office, retail shop, pet store, storage room, rental property odor
remediation
Dual Model Differentiation & Market Positioning LFT-263AW (Ozone-Free Household AIR
PURIFIER) LFT-263BW (AIR PURIFIER WITH OZONE MODULE for Commercial Use)

Summary: The LFT-263AW/LFT-263BW new-generation AIR PURIFIER integrates upgraded
TIO2 PCO technology, six-layer MULTIPLE FILTRATION, large air volume, intelligent
AQI monitoring and adjustable fan speeds, with an optional OZONE MODULE for deeper
cleaning.
Model number: LFT-263AW LFT-263BW
Function: LCD display, 5 adjustable fan speeds ,HEPA, ionizer,UV germicidal
and TIO2 technology LCD display,O3, 5 adjustable fan speeds ,HEPA,ionizer,UV
germicidal and TIO2 technology
Sensor: AQI
Timer: N/A
LCD / APP/WIFI: LCD
Input voltage: DC 24V/3A
Power: 53W 50W
Ozone plate size: N/A 41X10 mm 1pc
HEPA size: 143X107X25 mm
Size of photocatalyst board: 165X204X10mm 2pc 165X85X10mm 2pc
Air flow: Max 230CFM
Ozone production: N/A 180mg/h
UV lamp : φ15X170mm(2pc), 254nm φ15X170mm(1pc), 254nm
Negative ion production: ≥5 x 106cm3 (or≥2.5 x 106/cm3)
Applicable area: 150M² or 1500FT² 200M² or 2000FT²
Noise: 45 dB
Cooling method: Air-cooled
Air source: Air
Net weight: 2.5kg
Gross weight: 3.8kg
Product size: L285XW245XH310 mm
Packing size: 350X310X380 mm (1PCS/BOX)
Working Temp: -10ºC~+55ºC
Storage Temp: -20ºC~+60ºC
Working humidity: 10%~90% ,95ºF(35ºC)

Minimum Order: 200 pieces
